Introduction to ATP ash tank pump and AV pump structure principle

ATP ash tank pumpis a common powder conveying equipment，it has been widely used in heavy industry, medicine, building materials, glass fiber, forge and other industries，generally, it is composed of pressure transducer, pressure transducer, ash conveying pipeline, level-sensing device, air control box and other major components，This productThe overall structural design is relatively simple and compact.，be loved by our customers.。

1、Brief introduction of ATP ash tank pump

ATP ash tank pumpis a kind of material conveying equipment which uses the energy of air flow to continuously convey powdery and granular materials，It has the functions of save space, material handling, reduce material loss, reduce material loss and process control，multifunctional, with functions such as environmental protection and dust removal, save space, process control, material handling and reduce material loss，the advantage is The structure is relatively simple, the volume is small, and the body is cast at one time and formed by machining、Able to transport a variety of materials including high temperature and rough materials、Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application、It is suitable for multi-point dry material transportation of most dust collectors、The fully enclosed transportation system is adopted, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation，be of high quality。

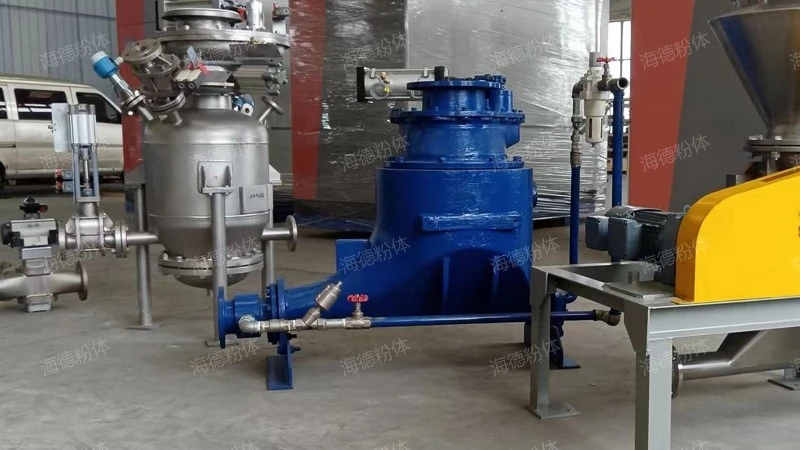

ATP ash tank pump

2、ATP ash tank pump application

ATP ash tank pumpWidely used in save space, material handling, environmental protection and dust removal, reduce material loss and process control，is developed and improved by Hyde powder。

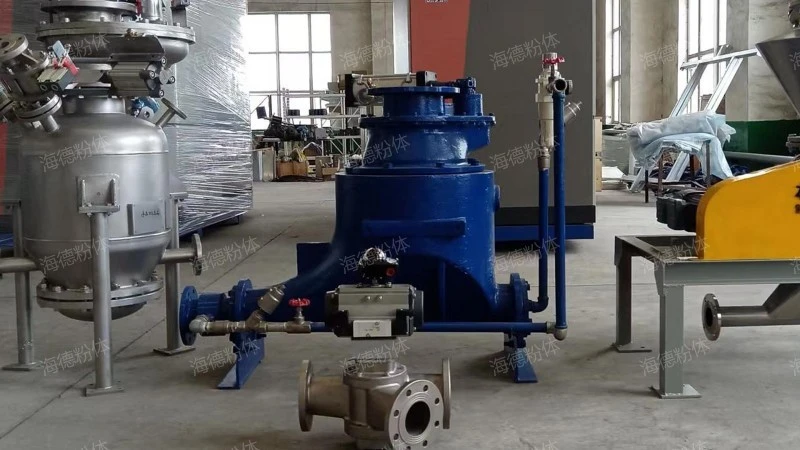

ATP ash tank pump

3、Functional advantages of ATP ash tank pump

ATP ash tank pumps have the following advantages.

1. Small size and light weight

The ATP ash tank pump has the characteristics of easy maintenance, which is convenient to move and install in different working occasions.

2. easy accessibility

The ATP ash tank pump operation is relatively simple, which is convenient for operators to get started quickly.

3. Strong conveying capacity

Based on the power of compressed air and the principle of dense-phase low-speed pneumatic conveying, the ATP ash tank pump can effectively and accurately convey materials and improve production efficiency.

4. Low energy consumption

Compared with other types of pumps, the ATP ash tank pump consumes less energy during operation, which helps to reduce the use cost.

5. Small size and light weight

The ATP ash tank pump has the characteristics of convenient maintenance, which is convenient to move and install in different working occasions.

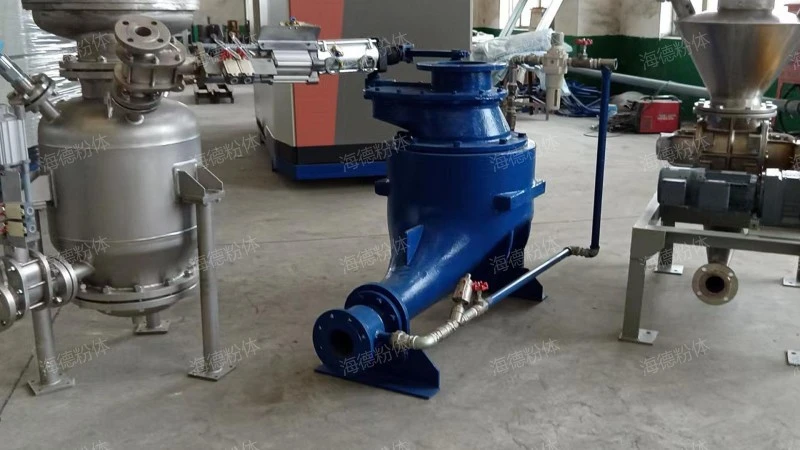

ATP ash tank pump

4、Structural advantages of ATP ash tank pump

The ATP ash tank pump has the following structure

1. Air control box

Each ATP ash tank pump is equipped with an air control box to control the running state of the ATP ash tank pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the ATP ash tank pump.

2. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the ATP ash tank pump during the operation of the ATP ash tank pump to prevent material blockage and deposition. This helps to keep the ATP ash tank pump system running smoothly.

3. Ash tank body

As the main part of the ATP ash tank pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

4. Feed dome valve

The feeding dome valve is the key component to control the material entering the ATP ash tank pump. It can be opened when needed, allowing materials to enter the ATP ash tank pump, and closed when not needed to ensure that materials will not leak.

5. electric cabinet

The electric cabinet is the control center of the ATP ash tank pump system, which is responsible for receiving signals from various sensors and controlling the operation of the ATP ash tank pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the ATP ash tank pump system.

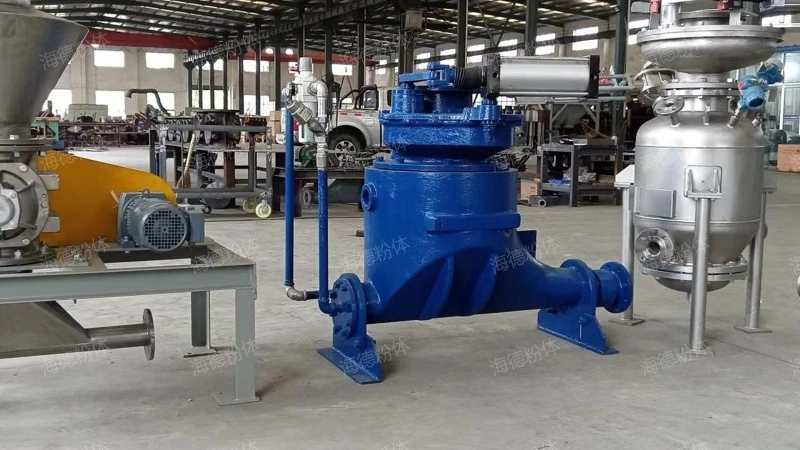

ATP ash tank pump

5、ATP ash tank pump price consultation

When purchasing a ATP ash tank pump, users will pay attention to its structure, performance and quality, and the price is undoubtedly a concern of users. So what is the price of the ATP ash tank pump in Hyde? Under normal circumstances, the price of this product will be influenced by many factors, such asmarket quotation, which will cause its price to fluctuate to some extent. However, our company guarantees that the quotation for ATP ash tank pump is fair, just, cheap and affordable, which makes the product cost-effective.。

ATP ash tank pump

6、Real-time shooting in Hyde's production workshop

The finished products of the ATP ash tank pump factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Hyde powder

The finished products of the ATP ash tank pump factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

ATP ash tank pumpthe advantage is Its ash pump has only one moving part, which has excellent quality, simple structure, reliable performance and less maintenance workload、Compact structure, low installation space, suitable for various venues、During the normal operation of the system, ash accumulates at the outlet of the electric field of the dust collector above the ATP ash tank pump, and the fly ash falls into the ATP ash tank pump installed below under the action of gravity, and then is transported to ash storage through the ash conveying pipeline、It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process、The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy，is a commonly used powder conveying equipment。
