Introduction to AV pump powder conveying, advantages, characteristics and principles of AV pump

AV pump powder conveyingis a commonly used powder conveying equipment，The overall structural design is relatively simple and compact.，it is usually composed of ash tank body, pressure transducer, feed dome valve, electric cabinet and level-sensing device，the product looks beautiful.，It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials、Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application、The structure is simple and the quality is excellent, and the maintenance workload of the AV pump powder conveying is relatively small, which reduces the maintenance cost、It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process，low in price。The following is to introduce the AV pump powder conveying:

1、Brief introduction of AV pump powder conveying

AV pump powder conveyingis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，it is an ideal choice for customers to buy AV pump powder conveying。

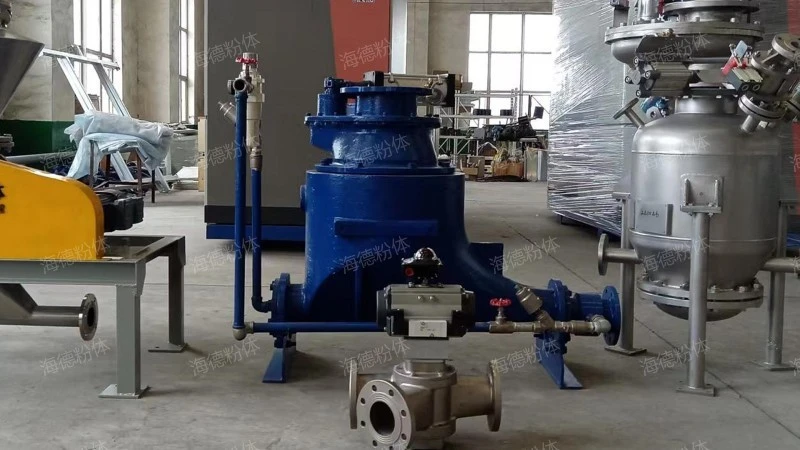

AV pump powder conveying

2、Structural characteristics of AV pump powder conveying

The AV pump powder conveying structure is introduced as follows:

1. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV pump powder conveying system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV pump powder conveying.

2. Ash tank body

As the main part of the AV pump powder conveying, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

3. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV pump powder conveying.

4. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump powder conveying. It can be opened when needed, allowing materials to enter the AV pump powder conveying, and closed when not needed to ensure that materials will not leak.

5. Air control box

Each AV pump powder conveying is equipped with an air control box to control the running state of the AV pump powder conveying. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV pump powder conveying.

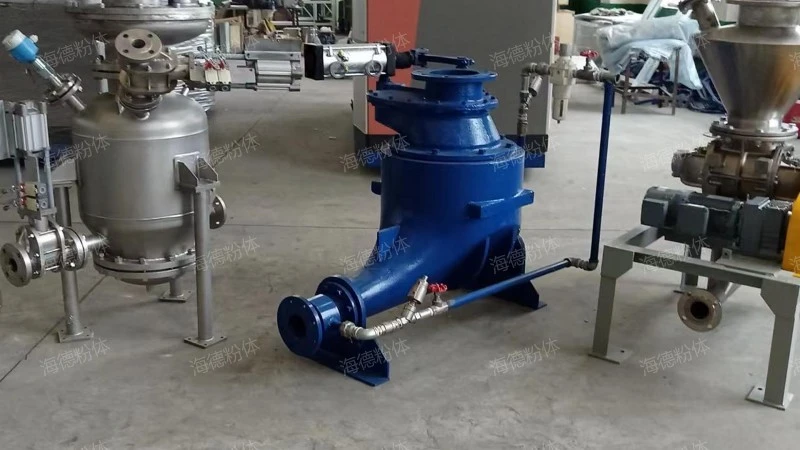

AV pump powder conveying

3、AV pump powder conveying use

AV pump powder conveyingWidely used in process control, environmental protection and dust removal, process control, reduce material loss and save space，it is widely used in metallurgy, semiconductor, heavy industry, forge, glass fiber and other industries，multifunctional, with functions such as environmental protection and dust removal, process control, save space, reduce material loss and material handling，be loved by our customers.。

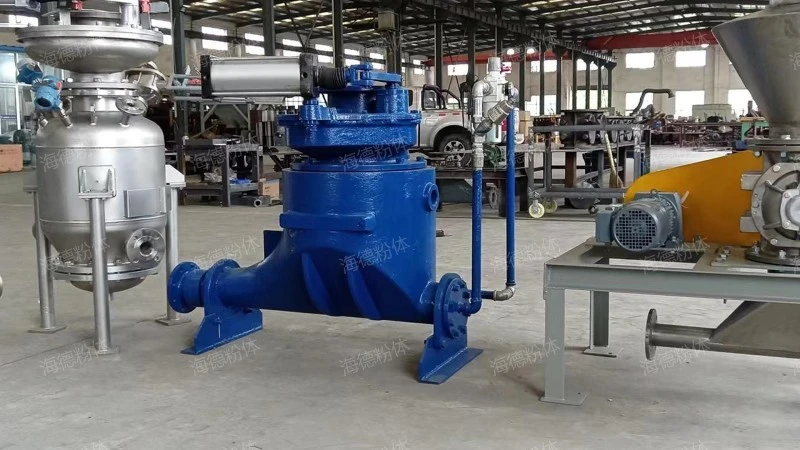

AV pump powder conveying

4、Advantages of AV pump powder conveying principle

AV pump powder conveyingat the start of the operation,Mainly based on the power of compressed air, the continuous transportation of materials is realized by dense-phase low-speed pneumatic transportation.。

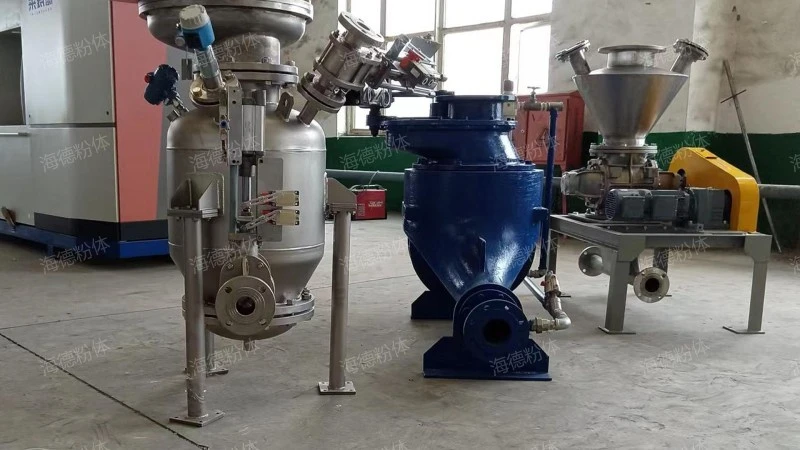

AV pump powder conveying

5、AV pump powder conveying function

AV pump powder conveyingit has the functions of material handling, environmental protection and dust removal, save space, process control and reduce material loss，it is widely used inmetallurgy,light industry,medicine,semiconductor,heavy industry and other industries，in the course of work,Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.，can be customized according to user's needs.。

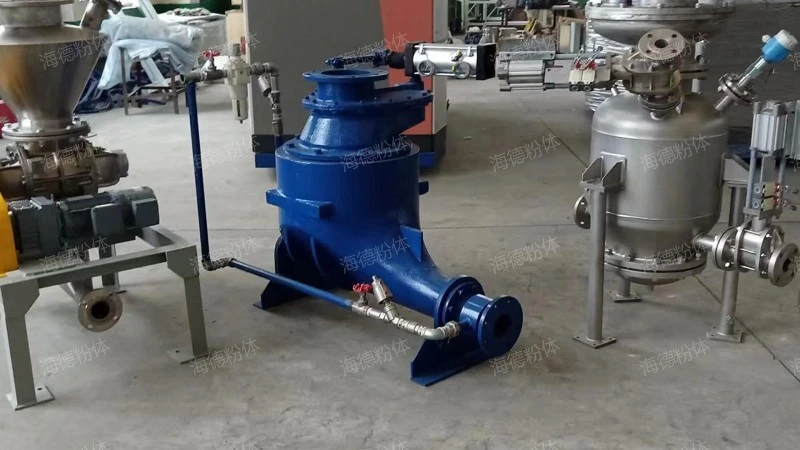

AV pump powder conveying

AV pump powder conveyingit is mainly composed of ash conveying pipeline, air control box, auxiliary blowing device, intake pipe and ash tank body，This AV pump powder conveyingSimple structure and reliable operation.，it has the functions of save space, environmental protection and dust removal, process control, material handling and reduce material loss，widely used inforge,glass fiber,ferrous metallurgy,building materials,chemical industry and other industries。
