Introduction to 304 stainless steel pneumatic conveying pump and bin pump advantages and features

304 stainless steel pneumatic conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，Mainly used forpneumatic ash conveying,particle transport,material handling,powder conveying andpneumatic ash conveying，the product looks atmospheric.，it has the characteristics of large conveying capacity, environmental protection and energy saving, omniseal, simple operation and convenient maintenance，multifunctional, with functions such as pneumatic transport, material handling, powder conveying, particle transport and environmental protection and dust removal。

1、Brief introduction of 304 stainless steel pneumatic conveying pump

304 stainless steel pneumatic conveying pumpas an efficient pneumatic conveying equipment。

304 stainless steel pneumatic conveying pump

2、304 stainless steel pneumatic conveying pump structure composition

The 304 stainless steel pneumatic conveying pump has the following structure

1. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

2. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

3. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

4. pump body

The core part of the 304 stainless steel pneumatic conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

304 stainless steel pneumatic conveying pump

3、Working principle of 304 stainless steel pneumatic conveying pump

The 304 stainless steel pneumatic conveying pump has the following principles.

1. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole 304 stainless steel pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Feeding stage

The feed valve of the 304 stainless steel pneumatic conveying pump is opened, and the material enters the pump body of the 304 stainless steel pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole 304 stainless steel pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

304 stainless steel pneumatic conveying pump

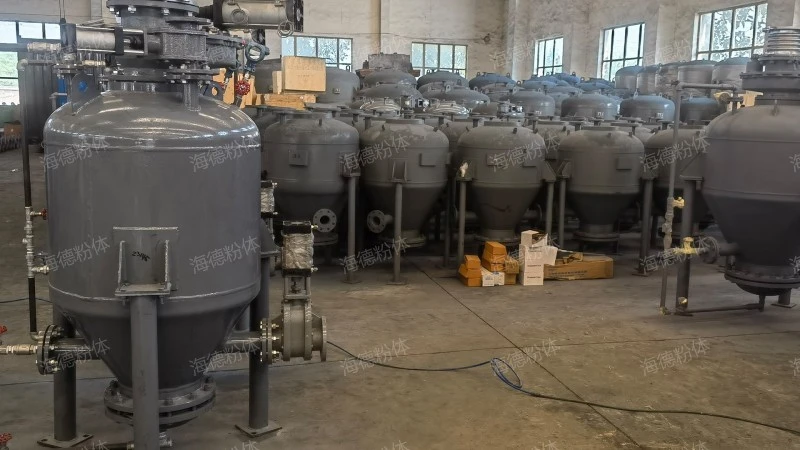

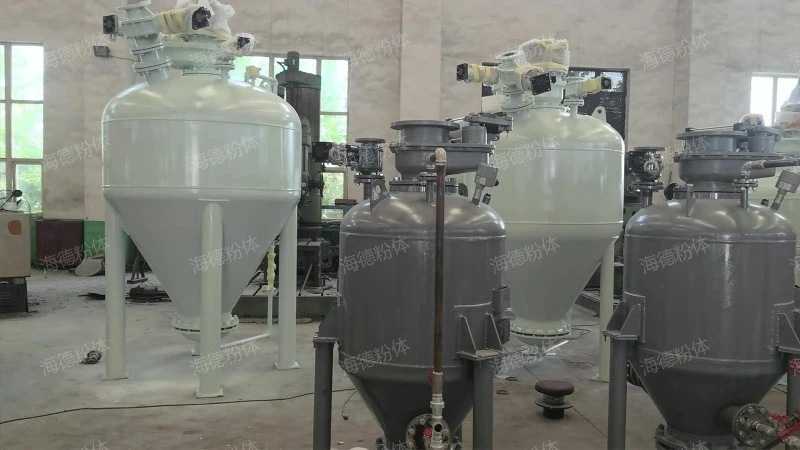

4、304 stainless steel pneumatic conveying pump HD real shot

hyde powder 304 stainless steel pneumatic conveying pump HD picture, panoramic shooting。

304 stainless steel pneumatic conveying pump

Note: All the pictures in this article were taken by hyde manufacturer.。

5、304 stainless steel pneumatic conveying pump performance advantage

304 stainless steel pneumatic conveying pumps have the following advantages.

1. Simple operation

The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.

2. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. 304 stainless steel pneumatic conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

3. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

4. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

5. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. 304 stainless steel pneumatic conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

304 stainless steel pneumatic conveying pump

6、How much is the 304 stainless steel pneumatic conveying pump?

The 304 stainless steel pneumatic conveying pump price is introduced as follows:

1. technology

The more advanced the technology, the higher the price will be, otherwise the equipment price will be low, and users must pay attention to whether their own technology meets the production requirements when purchasing equipment.

2. market supply and demand

Market change is one of the factors that affect the price range greatly. Market change is unstable, but there are certain rules to follow. Market change is caused by other factors, such as economic instability, competition among manufacturers and too big difference between supply and demand. These factors are the core reasons that cause the market to fluctuate greatly, and then it will have a bad impact on prices.

3. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

4. brand

Different brands of products in the same series have more or less differences in product prices, and different brands of 304 stainless steel pneumatic conveying pump have more or less differences in price.

5. brand

Different brands of products in the same series have more or less differences in product prices, and different brands of 304 stainless steel pneumatic conveying pump have more or less differences in price.

304 stainless steel pneumatic conveying pump

304 stainless steel pneumatic conveying pumpthe advantage is Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the 304 stainless steel pneumatic conveying pump can still maintain good working performance, ensuring the continuity and stability of material transportation.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the 304 stainless steel pneumatic conveying pump is relatively low, which is helpful for energy saving and emission reduction.、The operation mode is fully enclosed and automatic, and it can also be operated manually.，at work,It is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.。
