Introduction to Horizontal silo ash conveying pump and bin pump structure principle

Horizontal silo ash conveying pumpis a kind of equipment used for pneumatic conveying.，It can be used for environmental protection and dust removal, powder conveying, particle transport, material handling, pneumatic ash conveying, pneumatic transport and so on，it has the characteristics of large conveying capacity, strong adaptability, pollution-free transportation, environmental protection and energy saving and flexible layout，be loved by our customers.。The following is to introduce the Horizontal silo ash conveying pump:

1、Brief introduction of Horizontal silo ash conveying pump

Horizontal silo ash conveying pumpis a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.，customizable。

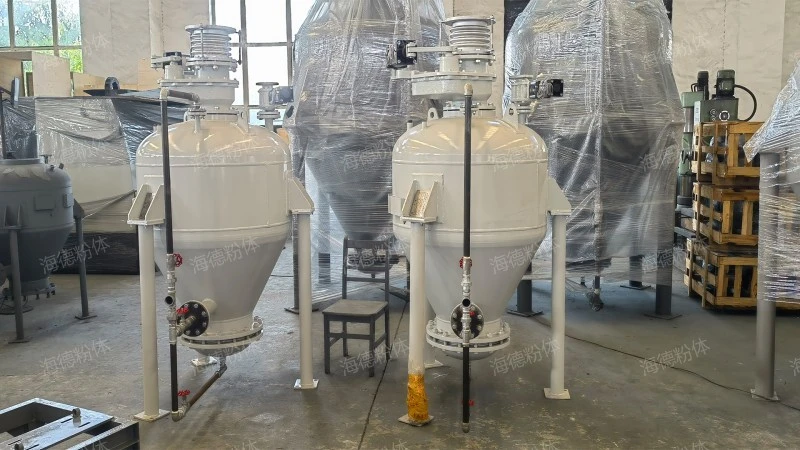

Horizontal silo ash conveying pump

2、Horizontal silo ash conveying pump characteristics

Horizontal silo ash conveying pumpfeatures include automation, omniseal, simple operation, efficient transportation and meet the requirements of environmental protection。

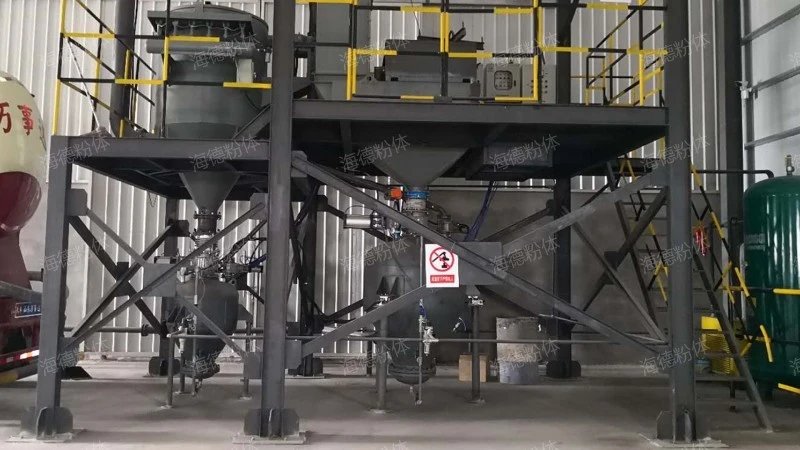

Horizontal silo ash conveying pump

3、Advantages of Horizontal silo ash conveying pump principle

Horizontal silo ash conveying pumpat work,It is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.，is developed and improved by hyde。

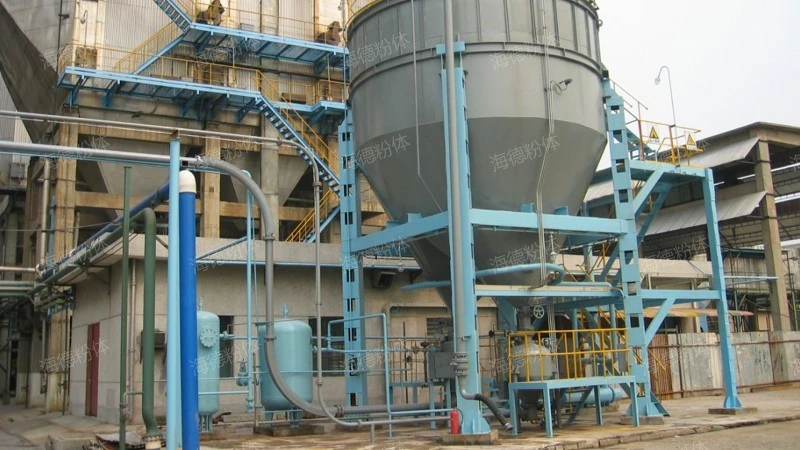

Horizontal silo ash conveying pump

4、Working principle of Horizontal silo ash conveying pump

The Horizontal silo ash conveying pump has the following principles.

1. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

2. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Horizontal silo ash conveying pump system can enter the next feeding-conveying-discharging cycle.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Feeding stage

The feed valve of the Horizontal silo ash conveying pump is opened, and the material enters the pump body of the Horizontal silo ash conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Horizontal silo ash conveying pump system can enter the next feeding-conveying-discharging cycle.

Horizontal silo ash conveying pump

5、Horizontal silo ash conveying pump HD picture real shot

The design of hyde powder Horizontal silo ash conveying pump is exquisite and elegant. Here are the high-definition pictures of hyde's factory products for our customers' reference. We need to make an appointment to visit the factory in advance for physical inspection.。

Horizontal silo ash conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

Horizontal silo ash conveying pumpCommonly used inenvironmental protection and dust removal,particle transport,powder conveying,material handling,pneumatic ash conveying and so on，at the start of the operation,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，as an efficient pneumatic conveying equipment。
