Introduction to Upward suction powder conveying pump, bin pump advantages, characteristics and principles

Upward suction powder conveying pumpis a kind of equipment used for pneumatic conveying.。

1、Brief introduction of Upward suction powder conveying pump

Upward suction powder conveying pumpas an efficient pneumatic conveying equipment，is a Upward suction powder conveying pump，is designed by hyde with advanced technology。

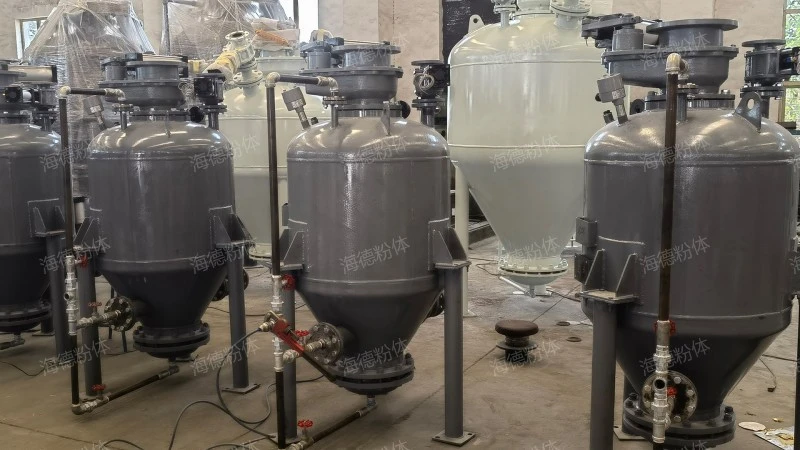

Upward suction powder conveying pump

2、Upward suction powder conveying pump structure composition

The Upward suction powder conveying pump has the following structure

1. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

2. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

3. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

4. pump body

The core part of the Upward suction powder conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

Upward suction powder conveying pump

3、Upward suction powder conveying pump principle

The Upward suction powder conveying pump has the following principles.

1. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

2. Feeding stage

The feed valve of the Upward suction powder conveying pump is opened, and the material enters the pump body of the Upward suction powder conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Upward suction powder conveying pump system can enter the next feeding-conveying-discharging cycle.

4. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

5. Feeding stage

The feed valve of the Upward suction powder conveying pump is opened, and the material enters the pump body of the Upward suction powder conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

Upward suction powder conveying pump

4、Upward suction powder conveying pump function

Upward suction powder conveying pumpit has the functions of pneumatic ash conveying, pneumatic ash conveying, environmental protection and dust removal, pneumatic transport and particle transport，is a popular Upward suction powder conveying pump，the product looks beautiful.，is based on hyde is carefully developed by hyde powder combined with advanced technology。

Upward suction powder conveying pump

5、Introduction of advantages of Upward suction powder conveying pump

Upward suction powder conveying pumps have the following advantages.

1. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

2. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

3. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

4. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

5. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

Upward suction powder conveying pump

6、Upward suction powder conveying pump video live broadcast

hyde powder provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Upward suction powder conveying pumpt operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Upward suction powder conveying pump

As you can see from the live video.，hyde powder the main structure includes intake valve, bleeder valve, air evacuation valve, control system and bleeder valve。

Upward suction powder conveying pumpis a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.，the advantage is The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the Upward suction powder conveying pump can still maintain good working performance, ensuring the continuity and stability of material transportation.、Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Upward suction powder conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.。
