Introduction to Mobile pneumatic conveying bin pump and bin pump structure principle

Mobile pneumatic conveying bin pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，at runtime,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，It has the functions of environmental protection and dust removal, pneumatic transport, pneumatic ash conveying, material handling and particle transport，is designed by hyde powder with advanced technology。

1、Brief introduction of Mobile pneumatic conveying bin pump

Mobile pneumatic conveying bin pumpis a kind of equipment used for pneumatic conveying.，support customization。

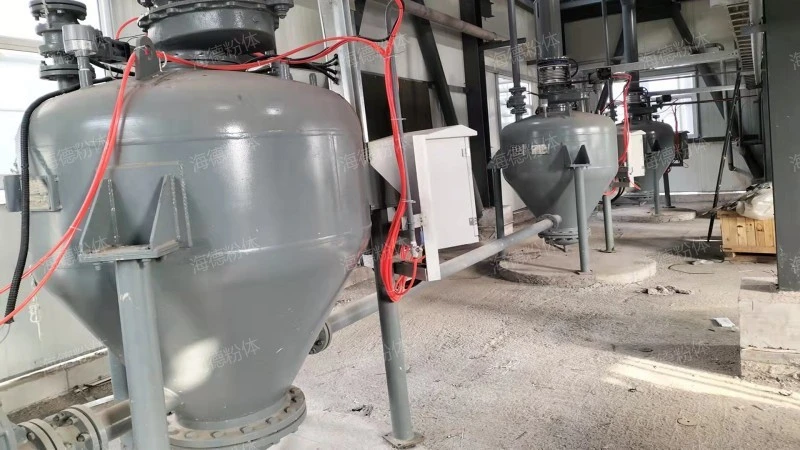

Mobile pneumatic conveying bin pump

2、Structural characteristics of Mobile pneumatic conveying bin pump

The Mobile pneumatic conveying bin pump structure is introduced as follows:

1. pump body

The core part of the Mobile pneumatic conveying bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

3. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

4. pump body

The core part of the Mobile pneumatic conveying bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

Mobile pneumatic conveying bin pump

3、Video analysis of Mobile pneumatic conveying bin pump

Speak directly with facts on the spot。

Mobile pneumatic conveying bin pump

As you can see from the live video.，hyde powder the advantage is The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.。

4、Mobile pneumatic conveying bin pump principle

The principle of Mobile pneumatic conveying bin pump is introduced as follows:

1. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

2. Feeding stage

The feed valve of the Mobile pneumatic conveying bin pump is opened, and the material enters the pump body of the Mobile pneumatic conveying bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Mobile pneumatic conveying bin pump system can enter the next feeding-conveying-discharging cycle.

5. Feeding stage

The feed valve of the Mobile pneumatic conveying bin pump is opened, and the material enters the pump body of the Mobile pneumatic conveying bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

Mobile pneumatic conveying bin pump

5、Mobile pneumatic conveying bin pump price consultation

The Mobile pneumatic conveying bin pump price is introduced as follows:

1. Product technology

Each customer needs different products, wants to achieve different purposes, and has different product technical design. The higher or more advanced the technical requirements, the more the product cost will be, and the price will increase with the increase of cost. On the contrary, the price will be cheaper.

2. model

Products generally have a variety of specifications and models to meet the multiple needs of manufacturing. The same is true for Mobile pneumatic conveying bin pump, which have different models and different performances. Therefore, these are all factors that affect the price change of Mobile pneumatic conveying bin pump.

3. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

4. Manufacturer's strength

Reliable manufacturers can produce excellent products, and such manufacturers have high comprehensive credibility and can design products in all directions. Therefore, compared with other manufacturers, such products have higher scientific and technological content and more functions. hyde's reputation and products are very high, and it is a trustworthy big brand and manufacturer.

5. Configuration difference

If the comprehensive configuration of the product is higher, the selling price of the product will be higher, otherwise the price will be lower, so there is a close relationship between the configuration level and the price.

Mobile pneumatic conveying bin pump

6、hyde powder's strength

The company has many years of Mobile pneumatic conveying bin pump manufacturing experience, large scale and strong strength.。

hyde

Mobile pneumatic conveying bin pumpit has been widely used in electricity industry, food service industry, chemical lines, electricity industry, grain processing and other industries，is a Mobile pneumatic conveying bin pump，it has the structure of pump body, control system, fluidizer, bleeder valve and control system。
