What is a Vertical rotating feeder? Introduction to the principle of Feeder structure

Vertical rotating feederis a device for discharging materials, which discharges materials from containers by specific mechanical or pneumatic means.，at runtime,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，widely used inbuilding materials cement,dock,mine,building materials,chemical raw material and other industries，Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.、The structure design is reasonable, which is convenient for daily maintenance and overhaul. At the same time, its good sealing performance also reduces the complexity and frequency of maintenance work.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment.、Using the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel, small in size and light in weight.、According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of the blade can also be specially processed according to the needs of users.，It has a wide range of uses, including blowing-in, continuously and uniformly feed or discharge., material handling, dust removal equipment discharges dust. and blowing-in。The following is to introduce the Vertical rotating feeder:

1、Brief introduction of Vertical rotating feeder

Vertical rotating feedermainly used for dust removal equipment, dust discharge, air supply and other equipment feeding process.，is a Vertical rotating feeder，the principle is simple.The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.，the product looks atmospheric.，it is an ideal choice for customers to buy Vertical rotating feeder。

Vertical rotating feeder

2、Structural advantages of Vertical rotating feeder

The Vertical rotating feeder has the following structure

1. impeller

Impeller is the key part of the Vertical rotating feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. Equalizing exhaust port

The side of the Vertical rotating feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

3. Rotor and shell

The rotor is the core component of the Vertical rotating feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. Motor and transmission device

The motor provides power for the Vertical rotating feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

5. sealing element

Seals are used to ensure the sealing performance of the Vertical rotating feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

Vertical rotating feeder

3、Vertical rotating feeder function

Vertical rotating feederit has the functions of dust removal equipment discharges dust., continuously and uniformly feed or discharge., ensure air tightness of the system, blowing-in and equipment feeding，is a kind of high quality and low price Vertical rotating feeder。

Vertical rotating feeder

4、Video analysis of Vertical rotating feeder

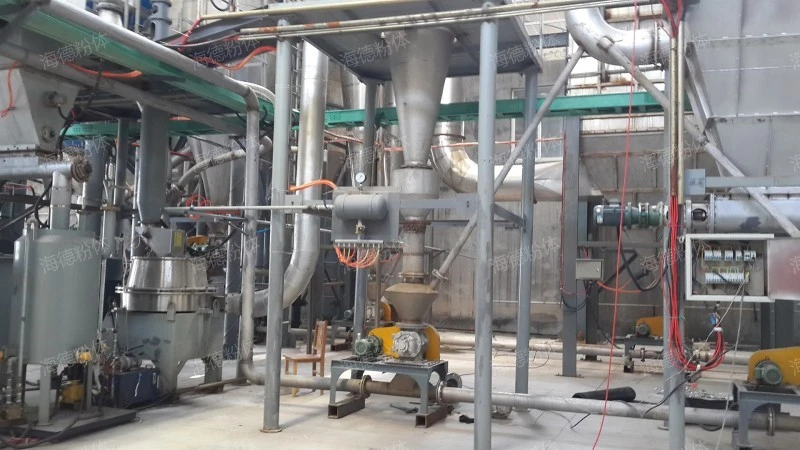

On-site aerial photography of Vertical rotating feeder。

Vertical rotating feeder

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. the product looks atmospheric.。

5、Vertical rotating feeder function

Vertical rotating feederit has the functions of dust removal equipment discharges dust., material handling, prevent gas or dust leakage, continuously and uniformly feed or discharge. and material handling，the advantage is It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.、The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、Can evenly and continuously feed materials into the clinker pipe to ensure the stability and continuity of material transportation.、Using the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel, small in size and light in weight.、With overload protection function, it can automatically stop the machine in case of abnormal situation to avoid equipment damage.，be loved by our customers.。

Vertical rotating feeder

6、Company discount

Vertical rotating feeder is a new type of Feeder introduced by hyde manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for metallurgy and other industries. Now consult Vertical rotating feeder, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

hyde powder

Vertical rotating feederat the start of the operation,Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Vertical rotating feeder is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，multifunctional, with functions such as prevent gas or dust leakage, equipment feeding, dust removal equipment discharges dust., blowing-in and ensure air tightness of the system，usually used in grain processing, energy mining industry, mine, dock, energy mining industry and other fields。
