Introduction to Bipolar series rotating feeder and Feeder structure principle

Bipolar series rotating feederis the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，it is an ideal choice for customers to buy Bipolar series rotating feeder。

1、Brief introduction of Bipolar series rotating feeder

Bipolar series rotating feederas an important bulk material conveying equipment，It can be used for continuously and uniformly feed or discharge., equipment feeding, dust removal equipment discharges dust., blowing-in, material handling, prevent gas or dust leakage and so on，it has been widely used in building materials cement, building materials, energy mining industry, chemical raw material, plastic metallurgy and other industries。

Bipolar series rotating feeder

2、Advantages of Bipolar series rotating feeder principle

Bipolar series rotating feederat runtime,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，it has the characteristics of flexible configuration, flexible adjustment, low noise, compact structure and low noise，has been favored by more and more customers.。

Bipolar series rotating feeder

3、Bipolar series rotating feeder application

Bipolar series rotating feederCommonly used inensure air tightness of the system,continuously and uniformly feed or discharge.,prevent gas or dust leakage,equipment feeding,dust removal equipment discharges dust. and so on，The overall structural design is relatively simple，generally, it is composed of main valve (including shell, end cover, impeller, sealing structure, etc.), rotor and shell, vent, equalizing exhaust port, motor reducing gear and other major components，is a common material conveying equipment.，the product looks atmospheric.，it is widely used in mine, mine, grain processing, building materials, energy mining industry and other industries。

Bipolar series rotating feeder

4、Bipolar series rotating feeder structure

The Bipolar series rotating feeder structure is introduced as follows:

1. impeller

Impeller is the key part of the Bipolar series rotating feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. sealing element

Seals are used to ensure the sealing performance of the Bipolar series rotating feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

3. Equalizing exhaust port

The side of the Bipolar series rotating feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

4. Motor and transmission device

The motor provides power for the Bipolar series rotating feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

5. Rotor and shell

The rotor is the core component of the Bipolar series rotating feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Bipolar series rotating feeder

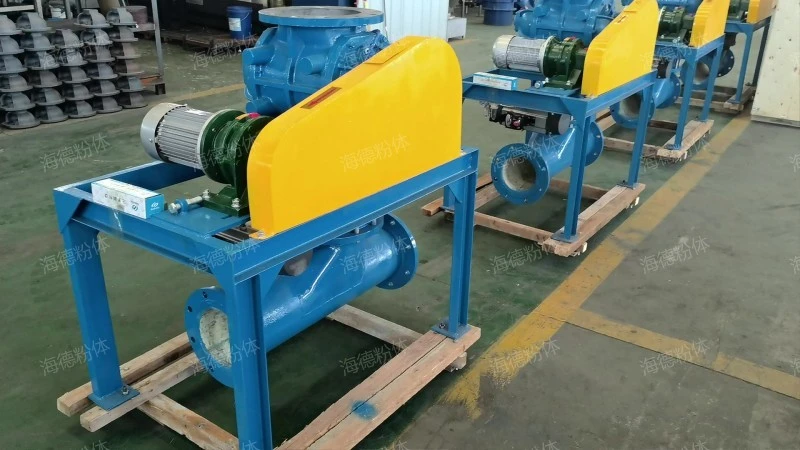

5、Bipolar series rotating feeder HD picture real shot

High-definition pictures of various types of Bipolar series rotating feeder are displayed for customers who are about to buy. Please submit a telephone appointment for physical inspection.。

Bipolar series rotating feeder

Note: All the pictures in this article were taken by hyde manufacturer.。

6、hyde powder company discount

Bipolar series rotating feeder is a new type of Feeder introduced by hyde powder manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for dock and other industries. Now consult hyde powderproduction-manufacturing的Bipolar series rotating feeder, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

hyde

Bipolar series rotating feederIt has a wide range of uses, including ensure air tightness of the system, blowing-in, material handling, continuously and uniformly feed or discharge. and dust removal equipment discharges dust.，multifunctional, with functions such as material handling, blowing-in, dust removal equipment discharges dust., equipment feeding and prevent gas or dust leakage。
