Introduction to Warehouse top feeder and Feeder working principle

Warehouse top feederis an excellent quantitative supply equipment designed for the purpose of supplying powder.，it is an ideal choice for customers to buy Warehouse top feeder。The following is to introduce the Warehouse top feeder:

1、Brief introduction of Warehouse top feeder

Warehouse top feederis an efficient, stable and reliable material conveying equipment.。

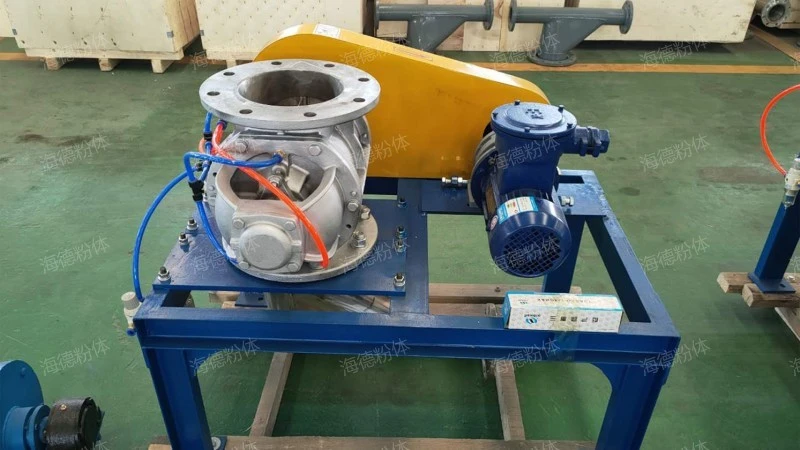

Warehouse top feeder

2、Warehouse top feeder principle

Warehouse top feederat the start of the operation,Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Warehouse top feeder is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，features include flexible configuration, reliable work, easy maintenance, good sealing performance and favorable price。

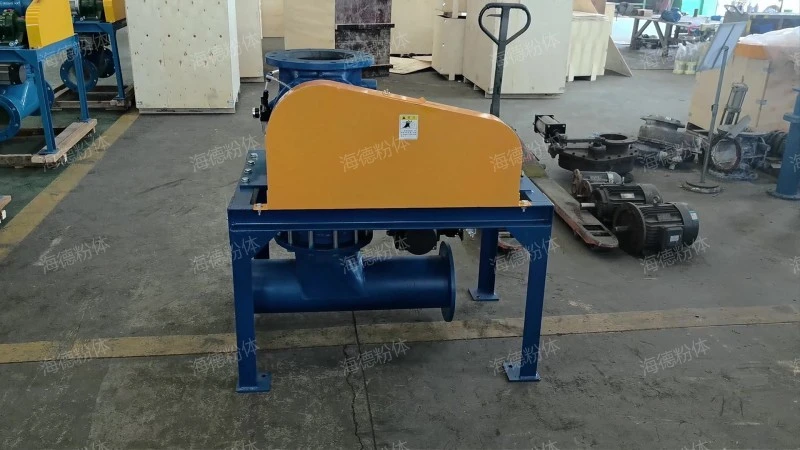

Warehouse top feeder

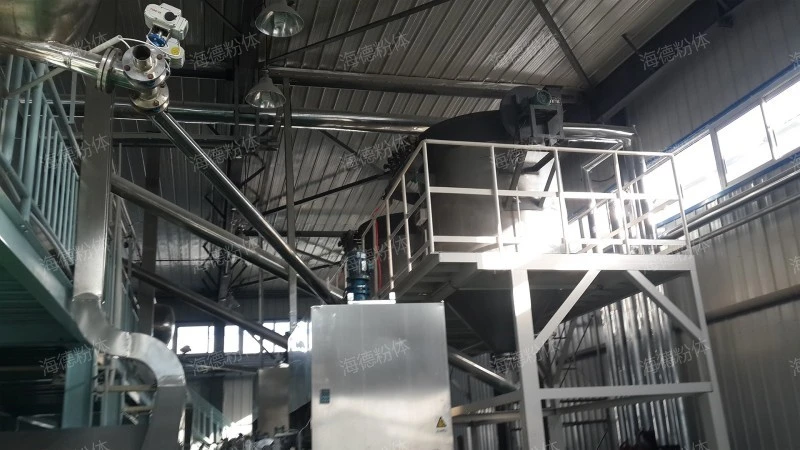

3、Warehouse top feeder video live broadcast

Speak directly with facts on the spot。

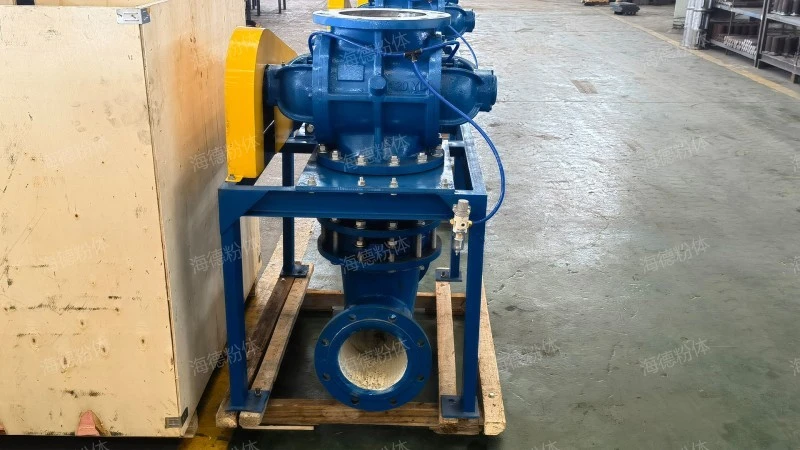

Warehouse top feeder

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. strong reliability,high wear resistance,handsome appearance,flexible adjustment,handsome appearance。

4、Warehouse top feeder characteristics

Warehouse top feederthe main features are favorable price, low noise, low noise, high wear resistance and strong overload capacity。

Warehouse top feeder

5、Structural advantages of Warehouse top feeder

The Warehouse top feeder structure is introduced as follows:

1. sealing element

Seals are used to ensure the sealing performance of the Warehouse top feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

2. Rotor and shell

The rotor is the core component of the Warehouse top feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

3. Motor and transmission device

The motor provides power for the Warehouse top feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. impeller

Impeller is the key part of the Warehouse top feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

5. Equalizing exhaust port

The side of the Warehouse top feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

Warehouse top feeder

6、Real-time shooting in hyde powder's production workshop

The finished products of the Warehouse top feeder factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

hyde powder

The finished products of the Warehouse top feeder factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Warehouse top feederCommonly used inensure air tightness of the system,material handling,prevent gas or dust leakage,material handling,dust removal equipment discharges dust. and so on，is the main equipment for conveying bulk materials.，it is widely used inenergy mining industry,mine,grain processing,plastic metallurgy,building materials and other industries。
