Introduction to Intelligent high-pressure three blade Roots blower and blower structure principle

Intelligent high-pressure three blade Roots bloweris a double impeller synchronous compression machine, belonging to a positive displacement blower.，in the course of work,The gas is compressed and transported by the relative rotation of a pair of trilobal rotors in the cylinder. Each trilobal rotor is supported by two bearings, and the relative position of the two rotors is always kept constant by using a pair of synchronous gears. During the rotation of the rotor, there are tiny gaps between impeller and impeller, impeller and casing, impeller and side cover, so there is no friction in the working chamber and no lubrication is needed, thus realizing the smooth transportation of gas.，is a popular Intelligent high-pressure three blade Roots blower，It is a product series that integrates sewage disposal, material handling, cool, sewage disposal and Desulfurization oxidation，can be customized according to user's needs.。

1、Brief introduction of Intelligent high-pressure three blade Roots blower

Intelligent high-pressure three blade Roots bloweris a double impeller synchronous compression machine, belonging to a positive displacement blower.，be loved by our customers.。

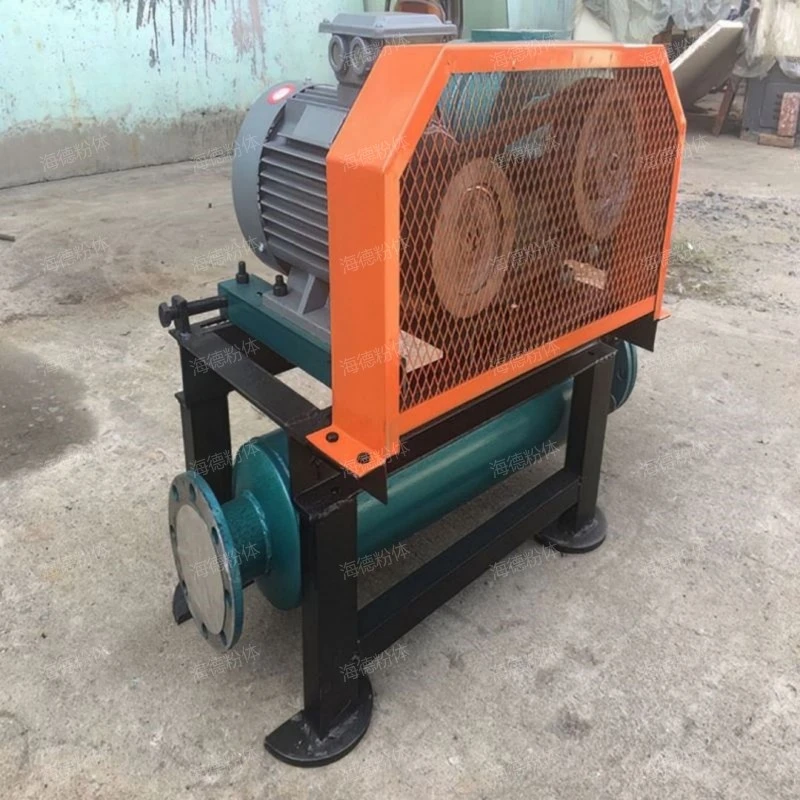

Intelligent high-pressure three blade Roots blower

2、Intelligent high-pressure three blade Roots blower use

Intelligent high-pressure three blade Roots blowerIt is mostly used in aquaculture, Pressurized transportation, supply air, mix, dehydrate, Ventilation and so on，it mainly includes muffler, wallboard, impeller, rotator and fuel tank。

Intelligent high-pressure three blade Roots blower

3、Introduction of Intelligent high-pressure three blade Roots blower characteristics

Intelligent high-pressure three blade Roots blowerit has the characteristics of strong adaptability, low noise, Precise control, wide application range and convenient maintenance，The two three-blade impellers rotate relatively in the space sealed by the casing and the wallboard. Each impeller adopts the envelope of involute or epicycloid, the three blades of each impeller are exactly the same, and the two impellers are also exactly the same, which greatly reduces the machining difficulty. During the rotation of the impeller, air enters the air inlet cavity under the action of atmospheric pressure, and then two blades of each impeller, the wallboard and the casing form a sealed cavity. During the rotation of the impeller, the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades, and because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out, so that the air is continuously transported from the air inlet to the air outlet.。

Intelligent high-pressure three blade Roots blower

4、Intelligent high-pressure three blade Roots blower structure composition

The Intelligent high-pressure three blade Roots blower has the following structure

1. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

2. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

3. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the Intelligent high-pressure three blade Roots blower, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

4. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

5. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

Intelligent high-pressure three blade Roots blower

5、Structural advantages of Intelligent high-pressure three blade Roots blower

The Intelligent high-pressure three blade Roots blower has the following structure

1. impeller

It is the rotating part of the Intelligent high-pressure three blade Roots blower, which is divided into two leaves and three leaves. However, due to many advantages such as smaller air pulsation, less noise and smoother operation, the three-leaf Intelligent high-pressure three blade Roots blower has gradually replaced the two-leaf Intelligent high-pressure three blade Roots blower.

2. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

3. muffler

Used to reduce the noise caused by airflow pulsation when the Intelligent high-pressure three blade Roots blower enters and exits.

4. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

5. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the Intelligent high-pressure three blade Roots blower, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

Intelligent high-pressure three blade Roots blower

6、Intelligent high-pressure three blade Roots blower application

Intelligent high-pressure three blade Roots blowerWidely used inMaterial fluidization,aeration,exhaust emission,pick up the suction,material handling and so on，it is widely used in port, aquaculture, Dust removal, port, Flue gas treatment and other industries，multifunctional, with functions such as material handling, pick up the suction, dehydrate, exhaust emission and aeration，is developed and improved by hyde powder。

Intelligent high-pressure three blade Roots blower

Intelligent high-pressure three blade Roots bloweris a popular Intelligent high-pressure three blade Roots blower，is a positive displacement blower.。
