Introduction to Breeding aerator Lu's fan and blower advantages and features

Breeding aerator Lu's fanis a device that generates positive pressure or negative pressure through the relative rotation of two impellers, thus compressing and conveying gas.，the product looks atmospheric.。

1、Brief introduction of Breeding aerator Lu's fan

Breeding aerator Lu's fanis a positive displacement blower.。

Breeding aerator Lu's fan

2、Breeding aerator Lu's fan structure composition

The Breeding aerator Lu's fan has the following structure

1. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

2. impeller

It is the rotating part of the Breeding aerator Lu's fan, which is divided into two leaves and three leaves. However, due to many advantages such as smaller air pulsation, less noise and smoother operation, the three-leaf Breeding aerator Lu's fan has gradually replaced the two-leaf Breeding aerator Lu's fan.

3. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the Breeding aerator Lu's fan, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

4. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

5. muffler

Used to reduce the noise caused by airflow pulsation when the Breeding aerator Lu's fan enters and exits.

Breeding aerator Lu's fan

3、Breeding aerator Lu's fan explanation video

On-site aerial photography of Breeding aerator Lu's fan。

Breeding aerator Lu's fan

As you can see from the live video.，hyde it has been widely used in Dust removal, Textile light textile, power, smelt, coal chemical industry and other industries。

4、Working principle of Breeding aerator Lu's fan

Breeding aerator Lu's fanthe principle is simple.The gas is compressed and transported by the relative rotation of a pair of trilobal rotors in the cylinder. Each trilobal rotor is supported by two bearings, and the relative position of the two rotors is always kept constant by using a pair of synchronous gears. During the rotation of the rotor, there are tiny gaps between impeller and impeller, impeller and casing, impeller and side cover, so there is no friction in the working chamber and no lubrication is needed, thus realizing the smooth transportation of gas.，the advantage is Due to the adoption of synchronous gear transmission and small gap design, the Breeding aerator Lu's fan runs stably and reliably, without contact and wear parts, and has a long service life.、The air volume is directly proportional to the rotating speed, so its air output is very stable and basically unaffected by pressure changes. This characteristic makes the Breeding aerator Lu's fan perform well in many situations where stable airflow is needed.、The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the fan have small vibration and low noise.、Simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.、The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the fan have small vibration and low noise.，is a popular Breeding aerator Lu's fan，multifunctional, with functions such as cool, material handling, desulfurization oxidation, supply air and sewage disposal，It is a product series that integrates mix, supply air, Ventilation, Material fluidization and Desulfurization oxidation。

Breeding aerator Lu's fan

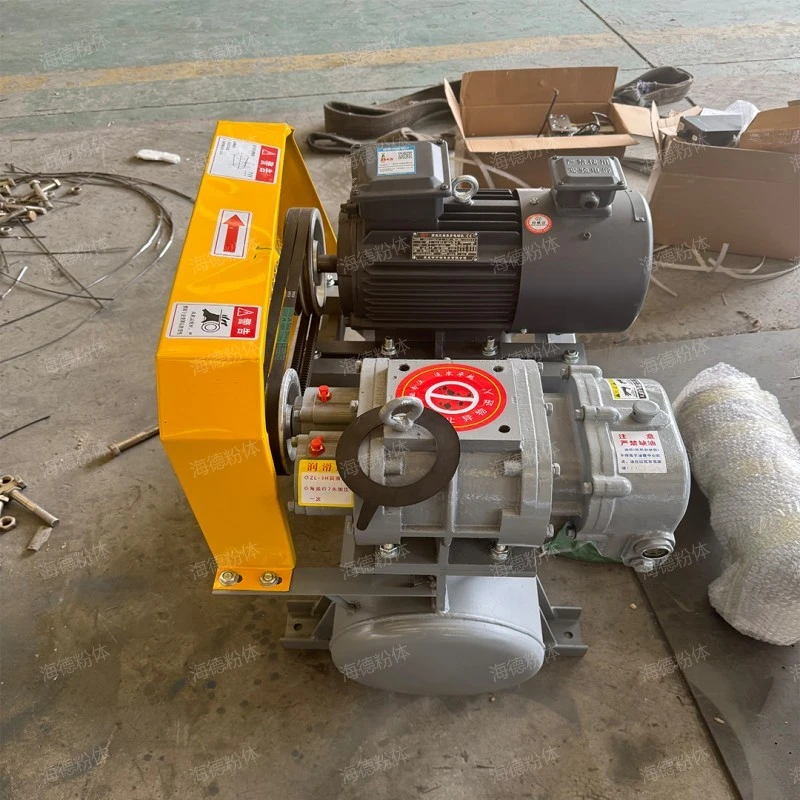

5、Breeding aerator Lu's fan HD picture real shot

Details of hyde powder Breeding aerator Lu's fan,the product looks atmospheric.。

Breeding aerator Lu's fan

Note: All the pictures in this article were taken by hyde manufacturer.。

6、hyde powder's strength

The company has many years of Breeding aerator Lu's fan manufacturing experience, large scale and strong strength.。

hyde

Breeding aerator Lu's fanit has the characteristics of strong adaptability, wide application range, low noise, convenient manufacture and energy-efficient，The overall structural design is relatively simple and compact.，generally, it is composed of wallboard, case, muffler, impeller, wallboard and other major components。
