Introduction to Roots blower for petrochemical industry, Three leaf Roots blower advantages, characteristics and principles

Roots blower for petrochemical industryis a positive displacement blower.，The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the Roots blower for petrochemical industry less vibration and noise.、Simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.、Small size and small floor space make it easy to arrange and install in places with limited space.、Due to the adoption of synchronous gear transmission and small gap design, the Roots blower for petrochemical industry runs stably and reliably, without contact and wear parts, and has a long service life.、Because of the design of three-blade rotor, the Roots blower for petrochemical industry has little vibration and low noise during operation, and the operation is stable and reliable，is designed by hyde with advanced technology。

1、Brief introduction of Roots blower for petrochemical industry

Roots blower for petrochemical industryis a double impeller synchronous compression machine, belonging to a positive displacement blower.。

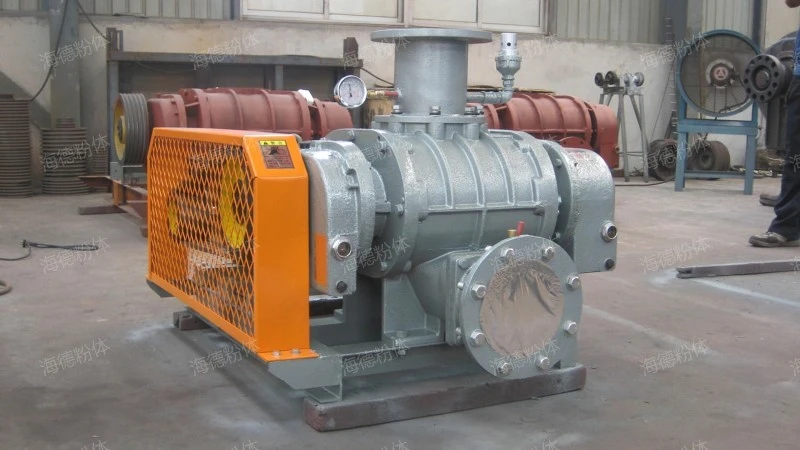

Roots blower for petrochemical industry

2、Structural advantages of Roots blower for petrochemical industry

The Roots blower for petrochemical industry has the following structure

1. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

2. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

3. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the Roots blower for petrochemical industry, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

4. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

5. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

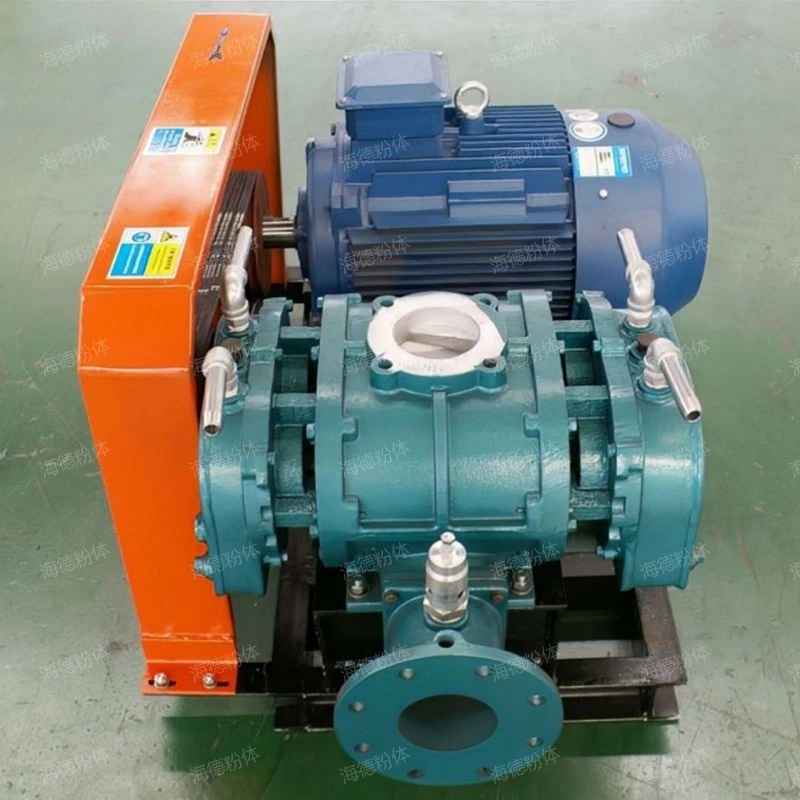

Roots blower for petrochemical industry

3、Functional advantages of Roots blower for petrochemical industry

The advantages of Roots blower for petrochemical industry are as follows:

1. be of simple construction

The Roots blower for petrochemical industry is simple in design and easy to manufacture and maintain.

2. Low noise and vibration

The three-leaf rotor structure of the Roots blower for petrochemical industry makes it less vibration and noise. This feature makes the Roots blower for petrochemical industry work normally in situations where a quiet environment is needed.

3. Economical and durable

The design without lubrication reduces the maintenance cost and improves the economy of the equipment.

4. energy-efficient

The Roots blower for petrochemical industry has high efficiency and can realize gas transportation and pressurization with low energy consumption.

5. Long service life

The mechanical friction of the Roots blower for petrochemical industry is small and the loss is low, so its service life is relatively long. This enables it to maintain high working efficiency and stability in long-term operation.

Roots blower for petrochemical industry

4、Roots blower for petrochemical industry application

Roots blower for petrochemical industryIt has the functions of Desulfurization oxidation, Pressurized transportation, exhaust emission, cool and Material fluidization，in the course of work,The gas is compressed and transported by the relative rotation of a pair of trilobal rotors in the cylinder. Each trilobal rotor is supported by two bearings, and the relative position of the two rotors is always kept constant by using a pair of synchronous gears. During the rotation of the rotor, there are tiny gaps between impeller and impeller, impeller and casing, impeller and side cover, so there is no friction in the working chamber and no lubrication is needed, thus realizing the smooth transportation of gas.，is a positive displacement blower.，at the start of the operation,When the motor drives one impeller to rotate, the other impeller will rotate synchronously at the same speed and in the opposite direction under the action of the synchronous gear. In the process of rotation, because the gaps between impeller and impeller, impeller and casing, impeller and wallboard are very small, a vacuum state is formed at the air inlet, and air is sucked into the air inlet cavity under the action of atmospheric pressure. As the impeller continues to rotate, two blades of each impeller, the wallboard and the casing form a sealed cavity, and the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades. Because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out. After continuous inhalation and extrusion, air is continuously transported from the air inlet to the air outlet, completing the whole gas transportation process.，is an advanced Roots blower for petrochemical industry developed by our company in combination with the actual situation of the industry。

Roots blower for petrochemical industry

5、Roots blower for petrochemical industry real beat

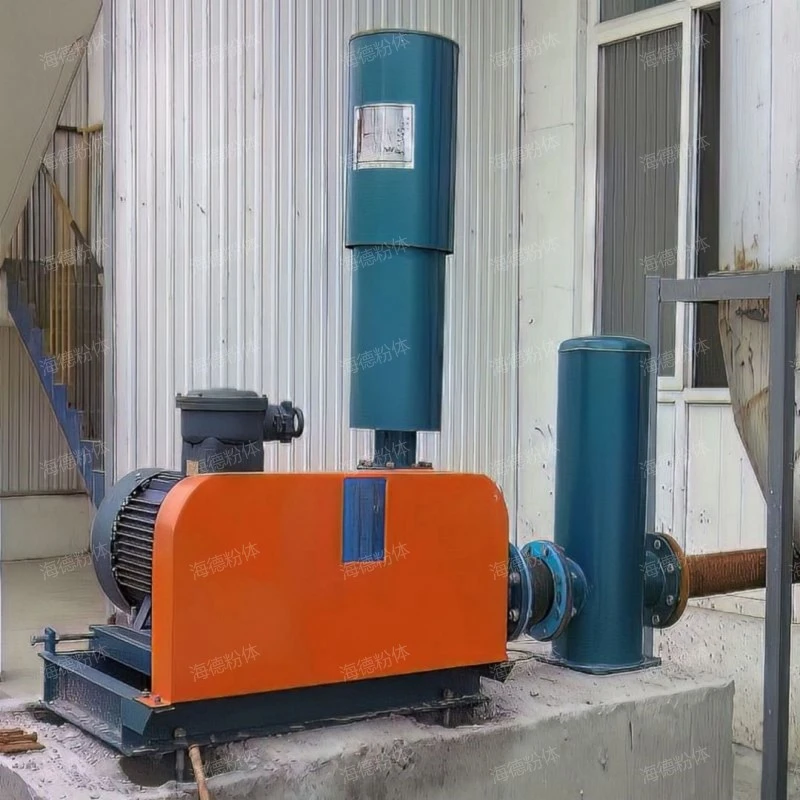

hyde Roots blower for petrochemical industrythe product looks atmospheric., the following is a panoramic shot of the Roots blower for petrochemical industry for your reference.。

Roots blower for petrochemical industry

Note: All the pictures in this article were taken by hyde powder manufacturer.。

6、Roots blower for petrochemical industry characteristics

Roots blower for petrochemical industrythe main features are wide application range, strong adaptability, be of simple construction, wide application range and low noise，the principle is simple.Gas is compressed and transported based on the relative motion of two lobed rotors in the cylinder. When the two rotors rotate, the volume between them changes constantly, thus realizing the suction, compression and discharge of gas.，customizable。

Roots blower for petrochemical industry

Roots blower for petrochemical industryis a common Roots blower for petrochemical industry，Structure consists of muffler, rotator, wallboard, fuel tank, impeller and so on，This productThe overall structural design is relatively simple。
