Introduction to Airflow conveying Roots blower, introduction to blower function advantages and characteristics

Airflow conveying Roots bloweris a device that generates positive pressure or negative pressure through the relative rotation of two impellers, thus compressing and conveying gas.，the product looks atmospheric.，It has a wide range of uses, and is often used inDesulfurization oxidation,mix,dehydrate,material handling,Pressurized transportation and so on，is a kind of Airflow conveying Roots blower manufactured by hyde powder。The following is to introduce the Airflow conveying Roots blower:

1、Brief introduction of Airflow conveying Roots blower

Airflow conveying Roots bloweris a positive displacement blower with forced gas transmission characteristics.，at work,The two three-blade impellers rotate relatively in the space sealed by the casing and the wallboard. Each impeller adopts the envelope of involute or epicycloid, the three blades of each impeller are exactly the same, and the two impellers are also exactly the same, which greatly reduces the machining difficulty. During the rotation of the impeller, air enters the air inlet cavity under the action of atmospheric pressure, and then two blades of each impeller, the wallboard and the casing form a sealed cavity. During the rotation of the impeller, the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades, and because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out, so that the air is continuously transported from the air inlet to the air outlet.，structure mainly includes: bearing, muffler, rotator, case, fuel tank and so on，This productThe overall structural design is simple and novel.，multifunctional, with functions such as supply air, desulfurization oxidation, dehydrate, cool and pick up the suction，is developed and improved by hyde。

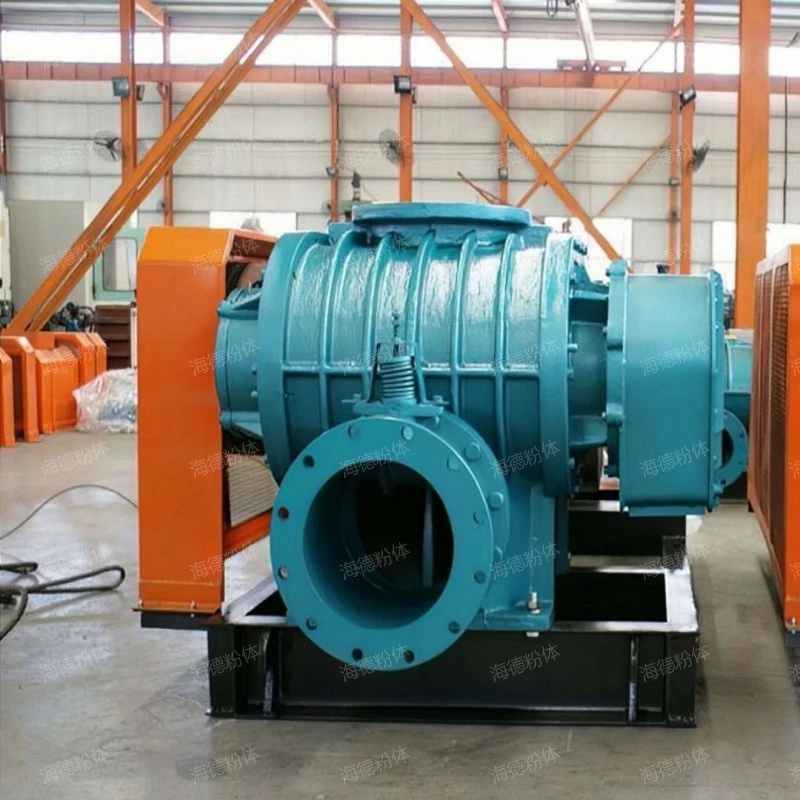

Airflow conveying Roots blower

2、Airflow conveying Roots blower introduction video

hyde powder provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Airflow conveying Roots blowert operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Airflow conveying Roots blower

As you can see from the live video.，hyde powder Due to the adoption of synchronous gear transmission and small gap design, the Airflow conveying Roots blower runs stably and reliably, without contact and wear parts, and has a long service life.、Small size and small floor space make it easy to arrange and install in places with limited space.、In the process of air intake and exhaust, the Airflow conveying Roots blower will not produce air pulsation, which means that it does not need an additional buffer gas tank to output gas smoothly. This is particularly important for processes that require stable airflow.、The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the fan have small vibration and low noise.、Simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.。

3、Airflow conveying Roots blower application

Airflow conveying Roots blowerCommonly used inpick up the suction,exhaust emission,cool,Pressurized transportation,mix and so on，is a positive displacement blower.，multifunctional, with functions such as aeration, exhaust emission, material fluidization, pressurized transportation and dry。

Airflow conveying Roots blower

4、Introduction of Airflow conveying Roots blower characteristics

Airflow conveying Roots blowerfeatures include wide application range, low noise, be of simple construction, economical and durable and strong adaptability，it can be used in port, petrify, smelt, mine, chemical fertilizer and other industries，the main structure includes rotator, case, case, bearing, fuel tank and so on，at the start of the operation,When the motor drives one impeller to rotate, the other impeller will rotate synchronously at the same speed and in the opposite direction under the action of the synchronous gear. In the process of rotation, because the gaps between impeller and impeller, impeller and casing, impeller and wallboard are very small, a vacuum state is formed at the air inlet, and air is sucked into the air inlet cavity under the action of atmospheric pressure. As the impeller continues to rotate, two blades of each impeller, the wallboard and the casing form a sealed cavity, and the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades. Because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out. After continuous inhalation and extrusion, air is continuously transported from the air inlet to the air outlet, completing the whole gas transportation process.，can be customized according to user's needs.。

Airflow conveying Roots blower

5、Advantages of Airflow conveying Roots blower principle

Airflow conveying Roots blowerthe principle is simple.The gas is compressed and transported by the relative rotation of a pair of trilobal rotors in the cylinder. Each trilobal rotor is supported by two bearings, and the relative position of the two rotors is always kept constant by using a pair of synchronous gears. During the rotation of the rotor, there are tiny gaps between impeller and impeller, impeller and casing, impeller and side cover, so there is no friction in the working chamber and no lubrication is needed, thus realizing the smooth transportation of gas.，it is widely used in manufacturing industry, sewage disposal, building materials, Textile light textile, petrochemical industry and other industries。

Airflow conveying Roots blower

6、hyde delivery site

The following is the live video of Airflow conveying Roots blower designed and produced by hyde powder for users, from which we can see the The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the Airflow conveying Roots blower less vibration and noise.、In the process of air intake and exhaust, the Airflow conveying Roots blower will not produce air pulsation, which means that it does not need an additional buffer gas tank to output gas smoothly. This is particularly important for processes that require stable airflow.、Because of the design of three-blade rotor, the Airflow conveying Roots blower has little vibration and low noise during operation, and the operation is stable and reliable、The air volume is directly proportional to the rotating speed, so its air output is very stable and basically unaffected by pressure changes. This characteristic makes the Airflow conveying Roots blower perform well in many situations where stable airflow is needed.、Due to the adoption of synchronous gear transmission and small gap design, the Airflow conveying Roots blower runs stably and reliably, without contact and wear parts, and has a long service life. of Airflow conveying Roots blower.。

Airflow conveying Roots blower

As you can see from the live video.hyde it has the functions of sewage disposal, cool, material fluidization, pressurized transportation and aeration。

Airflow conveying Roots blowerThe structural design is more advanced and reasonable.，it is usually composed of bearing, muffler, wallboard, fuel tank and impeller，It has the functions of Ventilation, pick up the suction, aquaculture, cool and aeration，the main features are smooth operation, wide application range, energy-efficient, convenient maintenance and Precise control。
