What is a HDSR150V Three Leaf Roots Vacuum Pump? Introduction to the principle of blower structure

HDSR150V Three Leaf Roots Vacuum Pumpis a positive displacement blower with forced gas transmission characteristics.，was developed and designed by hyde。

1、Brief introduction of HDSR150V Three Leaf Roots Vacuum Pump

HDSR150V Three Leaf Roots Vacuum Pumpis a double impeller synchronous compression machine, belonging to a positive displacement blower.，features include wide application range, be of simple construction, durable performance, economical and durable and Precise control，is an advanced HDSR150V Three Leaf Roots Vacuum Pump developed by our company in combination with the actual situation of the industry。

HDSR150V Three Leaf Roots Vacuum Pump

2、HDSR150V Three Leaf Roots Vacuum Pump principle

HDSR150V Three Leaf Roots Vacuum Pumpat work,Gas is compressed and transported based on the relative motion of two lobed rotors in the cylinder.，It is a product series that integrates dry, aeration, Ventilation, supply air and pick up the suction。

HDSR150V Three Leaf Roots Vacuum Pump

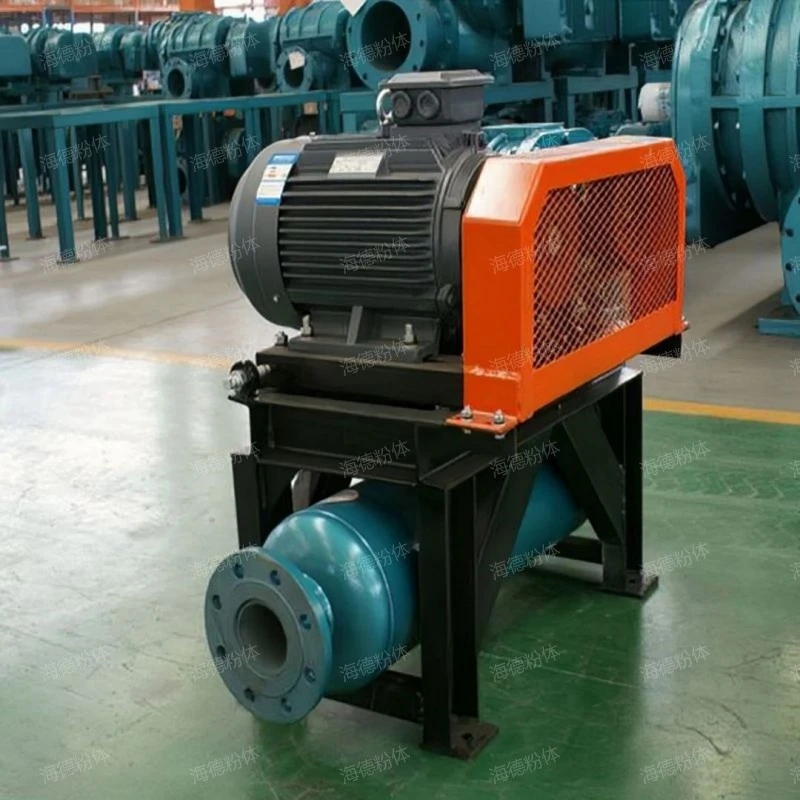

3、Physical picture of HDSR150V Three Leaf Roots Vacuum Pump

HDSR150V Three Leaf Roots Vacuum Pump styles and designs are diverse, specifications and models can be customized according to customer needs, providing high-definition pictures for new and old customers' reference.。

HDSR150V Three Leaf Roots Vacuum Pump

Note: All the pictures in this article were taken by hyde manufacturer.。

4、HDSR150V Three Leaf Roots Vacuum Pump function

HDSR150V Three Leaf Roots Vacuum Pumpmultifunctional, with functions such as mix, dry, desulfurization oxidation, supply air and aeration，Simple structural design, stable and reliable operation and convenient maintenance. This enables it to maintain high working efficiency and stability in long-term operation.、It has high efficiency and can realize gas transportation and pressurization with low energy consumption.、Small size and small floor space make it easy to arrange and install in places with limited space.、The air volume is directly proportional to the rotating speed, so its air output is very stable and basically unaffected by pressure changes. This characteristic makes the HDSR150V Three Leaf Roots Vacuum Pump perform well in many situations where stable airflow is needed.、The structural form of the three-blade rotor and the reasonable structure of the air inlet and outlet in the shell make the fan have small vibration and low noise.。

HDSR150V Three Leaf Roots Vacuum Pump

5、HDSR150V Three Leaf Roots Vacuum Pump structure composition

The HDSR150V Three Leaf Roots Vacuum Pump has the following structure

1. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

2. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

3. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

4. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

5. muffler

Used to reduce the noise caused by airflow pulsation when the HDSR150V Three Leaf Roots Vacuum Pump enters and exits.

HDSR150V Three Leaf Roots Vacuum Pump

HDSR150V Three Leaf Roots Vacuum Pumpit has the functions of dry, aquaculture, ventilation, cool and material fluidization，widely used incoal chemical industry,port,Pharmaceutical and chemical industries,manufacturing industry,water treatment and other industries。
