Introduction to HDFB200 material sealing pump and Material seal pump structure principle

HDFB200 material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which uses the ejector effect of high-speed airflow to convey powder materials.。

1、Brief introduction of HDFB200 material sealing pump

HDFB200 material sealing pumpIt is a device for conveying powdery materials by using the ejector effect of high-speed airflow.，Cheap and high quality。

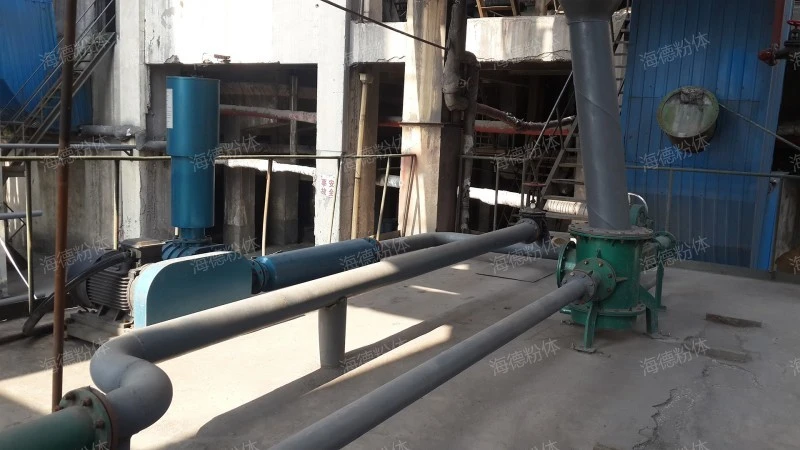

HDFB200 material sealing pump

2、HDFB200 material sealing pump structure

The HDFB200 material sealing pump structure is introduced as follows:

1. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the HDFB200 material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

2. Feed port and discharge port

The inlet is used to add powder materials into the HDFB200 material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

3. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the HDFB200 material sealing pump can be optimized and the conveying efficiency and stability can be improved.

4. sealing device

The sealing device is an important part in the HDFB200 material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

5. Bottom vaporization device

The bottom vaporizing device is an optional component in the HDFB200 material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

HDFB200 material sealing pump

3、Introduction of advantages of HDFB200 material sealing pump

The advantages of HDFB200 material sealing pump are as follows:

1. Strong adaptability and flexible layout

Pipes can be arranged horizontally, vertically and obliquely to adapt to various complicated transportation scenes.

2. energy saving and environmental protection

The fully sealed design also reduces dust emission and is beneficial to environmental protection.

3. Low pressure transportation, little wear and tear.

The HDFB200 material sealing pump adopts low-pressure conveying mode, and the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.

4. Simple structure and convenient operation and maintenance.

The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small, and the use cost is reduced.

5. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

HDFB200 material sealing pump

4、HDFB200 material sealing pump use

The purpose of HDFB200 material sealing pump is introduced as follows:

1. Raw material transportation in industrial production

In food such as commodity industry, HDFB200 material sealing pumps are often used as supporting equipment. It can cooperate with other production equipment to realize the automatic and continuous transportation of powder materials. This improves the production efficiency, reduces the labor cost, and helps to realize the automation and intelligence of the production process.

2. Waste disposal

HDFB200 material sealing pumps are also widely used in the field of waste treatment. For example, it can transport fly ash and other wastes to designated disposal sites, or be used in recycling ways such as the production of environmentally friendly bricks. This not only helps to reduce the accumulation and pollution of waste, but also realizes the reuse of resources.

3. Environmental protection and dust control

In the field of environmental protection, HDFB200 material sealing pumps can be used for dust collection and transportation, which helps to reduce dust pollution and improve the working environment.

4. System supporting use

The HDFB200 material sealing pump can also be used as an integrated part of a large pneumatic conveying system or a powder processing system. According to customers' specific needs and scenarios, the HDFB200 material sealing pump can be customized and optimized to achieve a more efficient and reliable powder conveying solution.

5. Long-distance and complex terrain transportation

The HDFB200 material sealing pump has the characteristics of Can be continuously conveyed., so it is especially suitable for conveying powder materials in long distance or complex terrain. Whether it is a mountain, a hill or a narrow space in a city, HDFB200 material sealing pumps can easily cope with all kinds of transportation needs.

HDFB200 material sealing pump

5、HDFB200 material sealing pump function

HDFB200 material sealing pumpit has the functions of Waste disposal, Dust control, System supporting use, Long-distance or complex terrain material transportation and Dust control，at the start of the operation,Based on the ejector effect of high-speed airflow, the mixing and acceleration of airflow and powder, the formation of material column and pressure balance, the isolation and sealing of positive and negative pressure, and the automatic adjustment and adaptation.。

HDFB200 material sealing pump

6、hyde workshop pictures

The finished products of the HDFB200 material sealing pump factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

hyde

The finished products of the HDFB200 material sealing pump factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

HDFB200 material sealing pumpit has been widely used in Processing industry, building materials, food, building materials, Aluminum industry and other industries，By adopting the low positive pressure and fully sealed transportation mode, foreign substances can not enter the pipe and will not change the properties of the required materials.、The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small and the use cost is reduced.、The low positive pressure and fully sealed conveying mode is adopted, which ensures that the powder will not leak to the external environment during the conveying process and meets the environmental protection requirements. The fully sealed design also prevents foreign substances from entering the tube, ensuring the purity and quality of the powder.、It can be flexibly arranged and configured according to the specific conditions of the system to meet the transportation needs of different projects. Pipes can be arranged horizontally, vertically and obliquely, which is suitable for all kinds of complicated transportation scenes.、Compared with the traditional mechanical conveying mode, the pneumatic conveying mode has higher energy efficiency ratio and lower energy consumption. The fully sealed design also reduces dust emission and is beneficial to environmental protection.。
