What is a Pneumatic material sealing pump? Introduction to the advantages and characteristics of Material seal pump functions

Pneumatic material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which belongs to the category of low-pressure dilute phase conveying, and mainly uses the ejector effect of high-speed airflow to convey powder materials.，it is widely used inelectricity industry,Processing industry,Cement industry,food,environmental protection and other industries，the principle is simple.Using the action of air jet, the air drives the ash particles to send the ash to ash storage. The energy when the Pneumatic material sealing pump works comes from two parts: one part is the kinetic energy of the fan, and the other part is the potential energy of the material column. When the material column is high, the potential energy is high and the pressure is high, the conveying capacity is correspondingly large, and vice versa.，was developed and designed by hyde powder。The following is to introduce the Pneumatic material sealing pump:

1、Brief introduction of Pneumatic material sealing pump

Pneumatic material sealing pumpIt is an advanced pneumatic conveying equipment for powder.，it has the functions of Conveying of powdery materials, Dust control, Conveying of powdery materials, System supporting use and Raw material transportation。

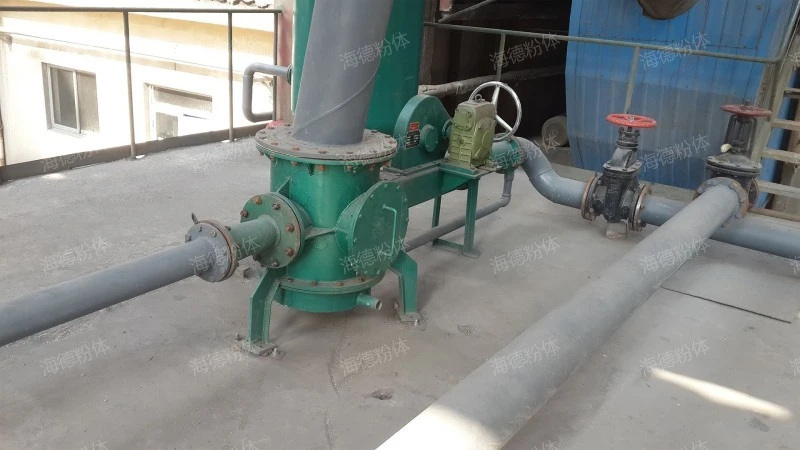

Pneumatic material sealing pump

2、Structural advantages of Pneumatic material sealing pump

The Pneumatic material sealing pump has the following structure

1. Bottom vaporization device

The bottom vaporizing device is an optional component in the Pneumatic material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

2. sealing device

The sealing device is an important part in the Pneumatic material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

3. injector

Nozzle is one of the key parts of the Pneumatic material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the Pneumatic material sealing pump.

4. Cylindrical pump body

The cylindrical pump body is the main part of the Pneumatic material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

5. Feed port and discharge port

The inlet is used to add powder materials into the Pneumatic material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

Pneumatic material sealing pump

3、Pneumatic material sealing pump function

Pneumatic material sealing pumpit has the functions of Long-distance or complex terrain material transportation, Waste disposal, Dust control, Waste disposal and System supporting use，It is a kind of equipment that uses the ejector effect of high-speed airflow to transport powdery materials.，the product looks beautiful.，widely used in Aluminum industry, Alumina powder conveying, Thermoelectric industry, electricity industry, Thermoelectric industry and other fields，customizable。

Pneumatic material sealing pump

4、Pneumatic material sealing pump principle

Pneumatic material sealing pumpat runtime,Using high-speed airflow as power source, powder materials are transported from one place to another through the injection and carrying action of airflow.，The price is more affordable，modern technology。

Pneumatic material sealing pump

5、Pneumatic material sealing pump characteristics

Pneumatic material sealing pumpPollution-free transportation,Convenient and flexible layout,Long service life,Wear is small,Reliable operation。

Pneumatic material sealing pump

6、hyde introduced

hyde powder has many years of experience in Pneumatic material sealing pump production, and is a professional Pneumatic material sealing pump manufacturer. With favorable Pneumatic material sealing pump price, stable product quality, rich product series and perfect after-sales service system, the company strives to become an advanced Pneumatic material sealing pump manufacturer in jinan, Shandong province.。

hyde

Pneumatic material sealing pumpthe main features are be of simple construction, Transport stability, easy to operate, Can be continuously conveyed. and be of simple construction，It has the functions of Waste disposal, Long-distance or complex terrain material transportation, Conveying of powdery materials, Raw material transportation and Dust control。
