Introduction to Low-pressure continuous conveying material sealing pump, advantages, characteristics and principles of Material seal pump

Low-pressure continuous conveying material sealing pumpIt is a kind of equipment that uses the ejector effect of high-speed airflow to transport powdery materials.，the principle is simple.Using high-speed airflow as power source, powder materials are transported from one place to another through the injection and carrying action of airflow. In the process of pneumatic conveying, the interaction between airflow and powder materials makes the powder materials carried by airflow and transported along the pipeline.。

1、Brief introduction of Low-pressure continuous conveying material sealing pump

Low-pressure continuous conveying material sealing pumpIt is a kind of powder pneumatic conveying equipment.，is a popular Low-pressure continuous conveying material sealing pump，The overall structural design is relatively simple and compact.，it mainly includes Bottom vaporization device, Nozzle adjusting device, injector, Supporting and connecting parts and Feed port and discharge port，was developed and designed by hyde powder。

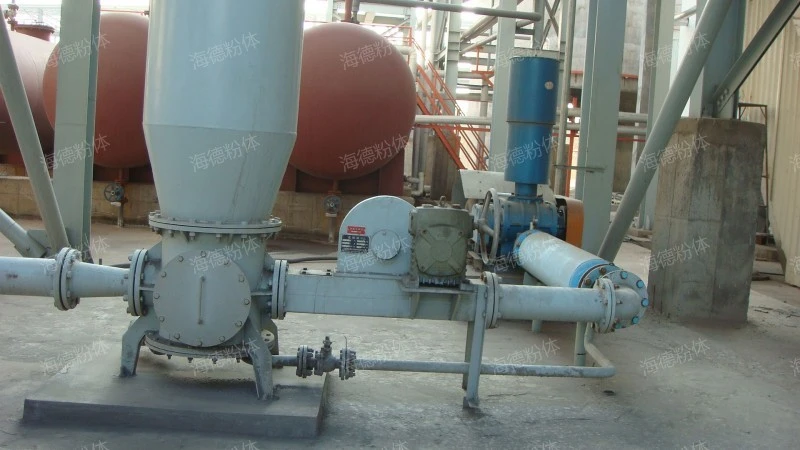

Low-pressure continuous conveying material sealing pump

2、Advantages of Low-pressure continuous conveying material sealing pump principle

Low-pressure continuous conveying material sealing pumpat work,Using the action of air jet, the air drives the ash particles to send the ash to ash storage. The energy when the Low-pressure continuous conveying material sealing pump works comes from two parts: one part is the kinetic energy of the fan, and the other part is the potential energy of the material column. When the material column is high, the potential energy is high and the pressure is high, the conveying capacity is correspondingly large, and vice versa.，it has the structure of Cylindrical pump body, Nozzle adjusting device, Bottom vaporization device, Supporting and connecting parts and injector，it has the functions of Long-distance or complex terrain material transportation, Dust control, Raw material transportation, System supporting use and Long-distance or complex terrain material transportation，it is mainly composed of sealing device, Feed port and discharge port, injector, Bottom vaporization device and sealing device，This productThe overall structural design is relatively simple，be loved by our customers.。

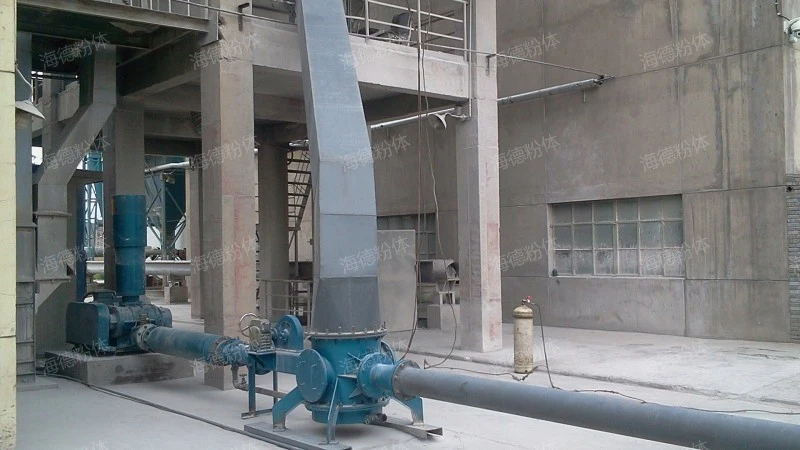

Low-pressure continuous conveying material sealing pump

3、Structural advantages of Low-pressure continuous conveying material sealing pump

The Low-pressure continuous conveying material sealing pump has the following structure

1. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the Low-pressure continuous conveying material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

2. Bottom vaporization device

The bottom vaporizing device is an optional component in the Low-pressure continuous conveying material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

3. sealing device

The sealing device is an important part in the Low-pressure continuous conveying material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

4. Cylindrical pump body

The cylindrical pump body is the main part of the Low-pressure continuous conveying material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

5. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the Low-pressure continuous conveying material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

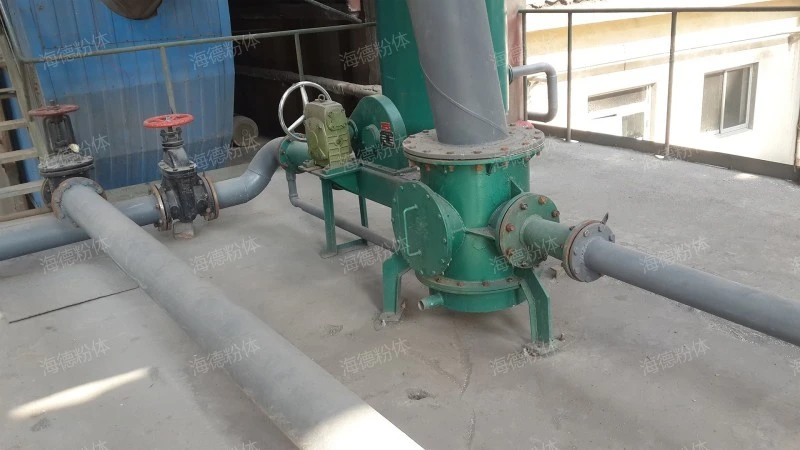

Low-pressure continuous conveying material sealing pump

4、Low-pressure continuous conveying material sealing pump advantage

The advantages of Low-pressure continuous conveying material sealing pump are as follows:

1. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

2. Simple structure and convenient operation

The Low-pressure continuous conveying material sealing pump has simple structure, convenient operation and small maintenance.

3. Simple structure and convenient operation and maintenance.

The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small, and the use cost is reduced.

4. Low pressure transportation, little wear and tear.

The Low-pressure continuous conveying material sealing pump adopts low-pressure conveying mode, and the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.

5. Continuous conveying

Powder can be continuously conveyed, and the conveying efficiency is improved. The equipment has the function of automatically adjusting the output, which can adjust the conveying capacity according to the actual demand and achieve good ash conveying effect.

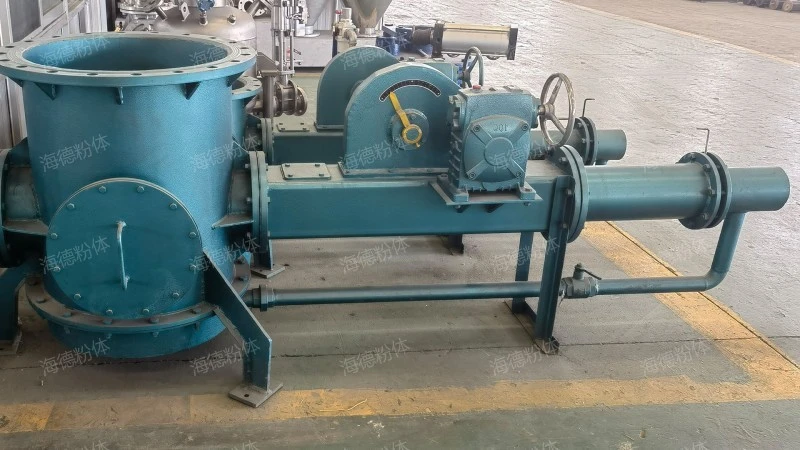

Low-pressure continuous conveying material sealing pump

5、Low-pressure continuous conveying material sealing pump introduction video

The following is the live video of Low-pressure continuous conveying material sealing pump designed and produced by hyde for users, from which we can see the By adopting the low positive pressure and fully sealed transportation mode, foreign substances can not enter the pipe and will not change the properties of the required materials.、Can be flexibly arranged and configured according to the specific situation of the system.、The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small and the use cost is reduced.、The low positive pressure and fully sealed conveying mode is adopted, which ensures that the powder will not leak to the external environment during the conveying process and meets the environmental protection requirements. The fully sealed design also prevents foreign substances from entering the tube, ensuring the purity and quality of the powder.、Powder can be continuously conveyed, and the conveying efficiency is improved. The equipment has the function of automatically adjusting the output, which can adjust the conveying quantity according to the actual demand and achieve good ash conveying effect. of Low-pressure continuous conveying material sealing pump.。

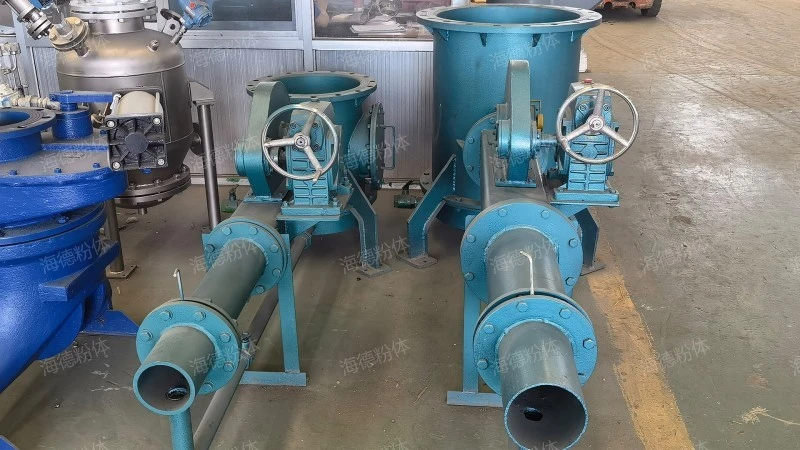

Low-pressure continuous conveying material sealing pump

As you can see from the live video.，hyde powder It is a new type of pneumatic conveying equipment for powder, which belongs to the category of low-pressure dilute phase conveying, and mainly uses the ejector effect of high-speed airflow to convey powder materials.。

6、Low-pressure continuous conveying material sealing pump price consultation

The Low-pressure continuous conveying material sealing pump price is introduced as follows:

1. Brand strength

At present, there are various brands of Low-pressure continuous conveying material sealing pump in jinan, Shandong province. The performance, quality and after-sales of products under different brands are different, and the prices of Low-pressure continuous conveying material sealing pump are different.

2. Service factor

Service factors always affect the sales price of products, and high-quality service will make customers have greater satisfaction and recognition. The service factors mainly include pre-sales service, in-sales service and after-sales service. For each stage of service, our company takes the price factor into account and makes a reasonable judgment between service and price, so that the Low-pressure continuous conveying material sealing pump price and service can meet the actual needs of customers.

3. regional difference

If the location of the manufacturer is superior, its transportation will be more convenient. hyde detailed address:Shanggao District, Zhangqiu District, Jinan City, Shandong Province has convenient transportation, which provides a good convenience for the transportation of Low-pressure continuous conveying material sealing pump.

4. Configuration difference

The higher the hardware configuration, the greater the product cost, so the sales price of such products will be higher. hyde powder pays special attention to the hardware configuration of products, so hyde Low-pressure continuous conveying material sealing pump has a higher cost performance.

5. Company size

Although there are many manufacturers of products in shandong(Province), there are certain differences in the scale and strength of each manufacturer. Some manufacturers are large in scale and strength, some are small in scale, and some manufacturers do not have their own production workshops and belong to middlemen. Relatively speaking, the prices of products formulated by middlemen are higher.

Low-pressure continuous conveying material sealing pump

Low-pressure continuous conveying material sealing pumpat the start of the operation,Using the high-speed airflow generated by the nozzle, a negative pressure area is formed, thereby ejecting powder materials into the pump body. This ejector action enables the powder material to be carried by the airflow and transported.，multifunctional, with functions such as System supporting use, Dust control, Raw material transportation, Waste disposal and Conveying of powdery materials。
