Introduction to Pneumatic ash extraction equipment and Powder conveying structure principle

Pneumatic ash extraction equipmentis a material conveying system that combines jet technology and fluidization technology.。

1、Brief introduction of Pneumatic ash extraction equipment

Pneumatic ash extraction equipmentalso known as airflow transportation, is a way to transport granular materials along the airflow direction in a closed pipeline by using the energy of airflow.，generally, it is composed of dust pelletizing system, Conveying pipeline system, Bunker system, delivery system, Air source system and other major components，multifunctional, with functions such as Explosion-proof involves, material handling, Closed conveying, Environmental protection and pollution-free and material handling，features include Simple system, Wide range of conveying materials, omniseal, Can carry out long-distance dispersion transportation. and Quantitative transportation，is a kind of Pneumatic ash extraction equipment manufactured by hyde。

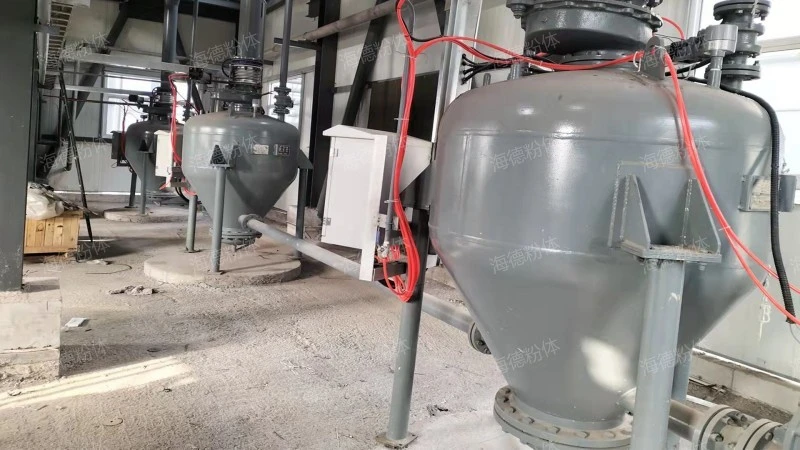

Pneumatic ash extraction equipment

2、Pneumatic ash extraction equipment structure

The Pneumatic ash extraction equipment structure is introduced as follows:

1. Conveying pipeline system

The conveying pipeline is a channel for conveying materials after mixing with airflow. It is made of wear-resistant and corrosion-resistant materials to ensure that the materials will not be polluted or damaged during transportation. The diameter, shape and length of the pipeline will be designed according to the characteristics and delivery capacity of the transported materials. In addition, the pipeline system may also include some auxiliary fittings, such as valves, elbows, expansion joints, etc., for regulating air flow and pipeline connection.

2. Bunker system

The silo temporarily stores and releases materials. The silo is usually designed as a pyramid or conical structure to facilitate the storage and unloading of materials. The design of silo needs to consider the different problems of materials in the process of storage and unloading and the flow form of materials.

3. Air source device

The air source device is the power core of the Pneumatic ash extraction equipment system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.

4. Feeding device

The feeding device is responsible for feeding materials evenly and stably into the conveying pipeline. It is usually installed at the beginning of the system, and uses the negative pressure or positive pressure formed by the air source device to mix materials with air in a certain proportion and send them into the pipeline. Common feeding devices include rotary valves, screw conveyors, rotary feeders, screw pumps, silo pumps and Venturi nozzles. The selection of feeding device should be considered comprehensively according to the characteristics of materials and transportation requirements.

5. Bunker system

The silo temporarily stores and releases materials. The silo is usually designed as a pyramid or conical structure to facilitate the storage and unloading of materials. The design of silo needs to consider the different problems of materials in the process of storage and unloading and the flow form of materials.

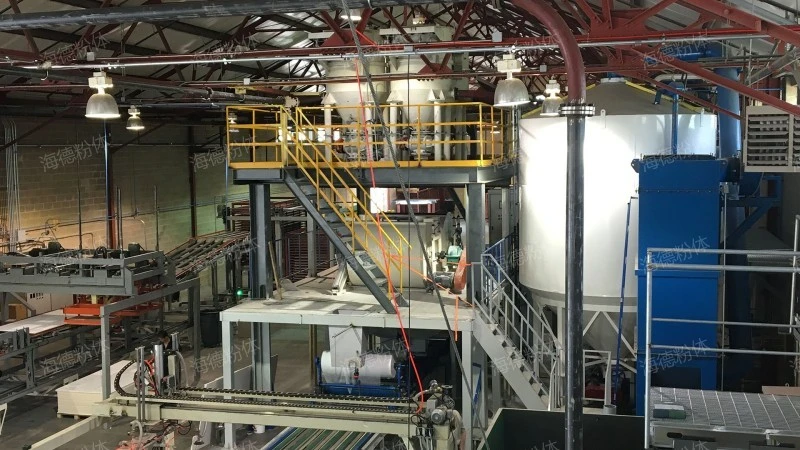

Pneumatic ash extraction equipment

3、Pneumatic ash extraction equipment advantage

The advantages of Pneumatic ash extraction equipment are as follows:

1. Material quality protection

In the process of conveying, the Pneumatic ash extraction equipment can prevent the materials from getting wet, soiled or mixed with other impurities, thus ensuring the quality of the conveyed materials. This is especially important for some industries that require high material quality.

2. Environmental protection and pollution-free

In the process of Pneumatic ash extraction equipment opening, dust pollution and noise pollution will hardly occur, which is more environmentally friendly than traditional mechanical transportation.

3. versatility

The Pneumatic ash extraction equipment system can not only realize the transportation of materials, but also carry out various technological operations at the same time, such as mixing, crushing, grading, drying and cooling. This versatility makes Pneumatic ash extraction equipments widely used in many industries.

4. Generality

The Pneumatic ash extraction equipment system can transport a variety of materials, including powdery, granular, fibrous and small block materials, and has strong adaptability. At the same time, for materials with unstable chemical properties, inert gas can also be used for transportation to ensure the stability of materials during transportation.

5. Low maintenance cost

Although the initial investment of Pneumatic ash extraction equipment system may be high, its maintenance cost is relatively low. Because the equipment has simple structure and few moving parts, it is convenient to maintain and has low cost. In addition, after long-term operation, its efficient and stable conveying performance will also bring remarkable economic benefits to enterprises.

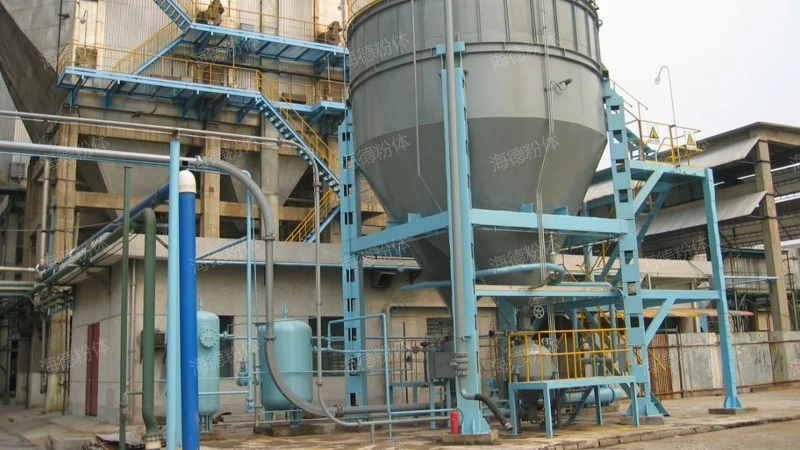

Pneumatic ash extraction equipment

4、Pneumatic ash extraction equipment use

The purpose of Pneumatic ash extraction equipment is introduced as follows:

1. Environmental protection and cleaner production

The Pneumatic ash extraction equipment process is carried out in a closed pipeline, which effectively prevents dust from flying and leaking, thus reducing environmental pollution and harm to employees' health. This is especially important for industries that need to maintain high cleanliness or dust-free environment.

2. Heating, cooling and drying

Heating, cooling or drying equipment can be installed in the Pneumatic ash extraction equipment pipeline to carry out necessary treatment of materials to meet the specific requirements in the production process.

3. Multi-point transportation

The Pneumatic ash extraction equipment system can be flexibly configured to realize transportation from multiple centralized points to one centralized point, or from one centralized point to multiple centralized points, so as to meet the complex production layout requirements.

4. material handling

Pneumatic ash extraction equipment system is widely used in conveying all kinds of powdery, granular and small block materials. These materials include, but are not limited to, cement, fly ash, grain, plastic particles, ore, pulverized coal, pharmaceutical powder, etc. Through the pipeline system, these materials can be efficiently and continuously transported from one place to another, greatly reducing the complexity and cost of manual handling and mechanical transportation.

5. Bulk material transportation

The Pneumatic ash extraction equipment is especially suitable for conveying powdery, granular and flowable bulk materials. These materials include, but are not limited to, cement, fly ash, grain, plastic particles, pharmaceutical powder, etc. Through the Pneumatic ash extraction equipment, these materials can be efficiently transferred between different production links or equipment.

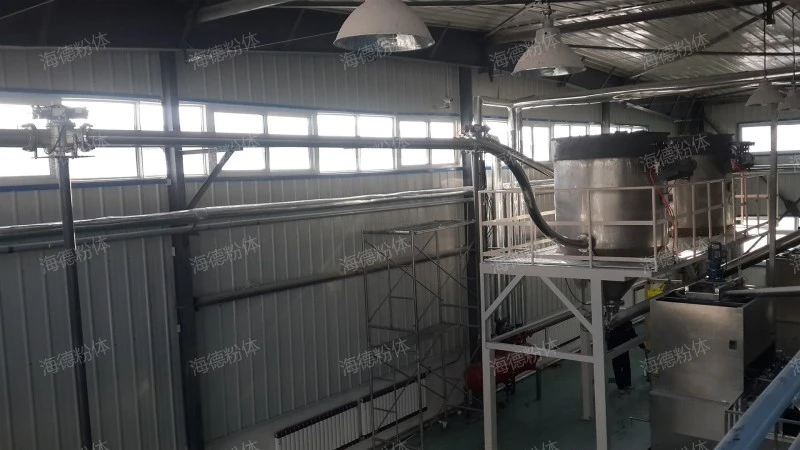

Pneumatic ash extraction equipment

5、Pneumatic ash extraction equipment customer scene picture

Take a look at the high-definition drawings of Pneumatic ash extraction equipment with excellent quality for our customers' reference.。

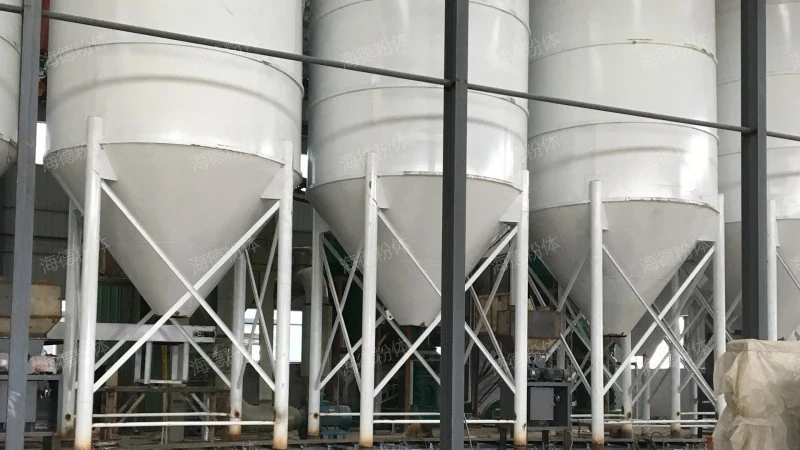

Pneumatic ash extraction equipment

Note: All the pictures in this article were taken by hyde powder manufacturer.。

6、Why choose hyde?

Choosing a suitable Pneumatic ash extraction equipment manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase Pneumatic ash extraction equipment products that meet the demand and have good cost performance.。

hyde powder

Pneumatic ash extraction equipmentthe advantage is In the conveying process, various technological operations can be carried out at the same time.、Large conveying capacity, long conveying distance and high conveying quality.、Fully enclosed transportation system, materials are transported in closed pipes.，It can reduce the pollution to the surrounding environment in the process of transportation, improve the production environment, facilitate safe production, and completely seal and transport without pollution.、Multi-point feeding and multi-point discharging can be realized, and remote operation can be realized.、In the process of conveying, various technological operations can be carried out at the same time, such as be broken.，It is mostly used in material handling, Bulk material transportation, Long distance transportation, Heating, cooling and drying, Dust removal and essence, Multi-point transportation and so on。
