What is a Multi point feeding and conveying equipment? Introduction to the principle of Powder conveying structure

Multi point feeding and conveying equipmentis a material conveying system that combines jet technology and fluidization technology.，Structure consists of delivery system, dust pelletizing system, control system, Bunker system, Air source system and so on，the product looks atmospheric.，multifunctional, with functions such as Physical processing assistance, Explosion-proof involves, Closed conveying, Environmental protection and pollution-free and Automatic control，is developed and improved by hyde powder。

1、Brief introduction of Multi point feeding and conveying equipment

Multi point feeding and conveying equipmentis a process of transporting bulk materials from one or more sources to one or more destinations by using airflow as a transport medium.。

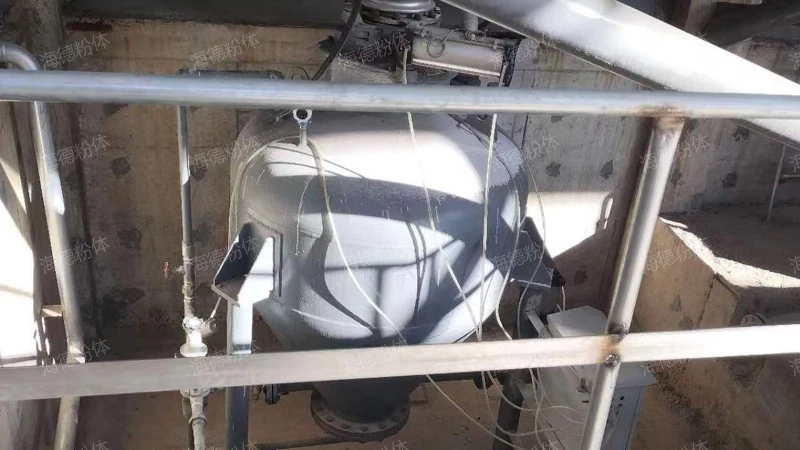

Multi point feeding and conveying equipment

2、Structural advantages of Multi point feeding and conveying equipment

The Multi point feeding and conveying equipment has the following structure

1. control system

The control system is the "brain" of the Multi point feeding and conveying equipment system, which is responsible for monitoring and controlling the whole system. Through the control equipment such as programmable controller, the parameters such as airflow speed, feed rate and system pressure can be accurately adjusted and controlled to ensure the stable operation of the system and meet the production requirements.

2. Air source device

The air source device is the power core of the Multi point feeding and conveying equipment system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.

3. Feeding device

The feeding device is responsible for feeding materials evenly and stably into the conveying pipeline. It is usually installed at the beginning of the system, and uses the negative pressure or positive pressure formed by the air source device to mix materials with air in a certain proportion and send them into the pipeline. Common feeding devices include rotary valves, screw conveyors, rotary feeders, screw pumps, silo pumps and Venturi nozzles. The selection of feeding device should be considered comprehensively according to the characteristics of materials and transportation requirements.

4. dust pelletizing system

Dust removal system is very important for the environmental protection performance of Multi point feeding and conveying equipment system. It is responsible for handling the dust and waste gas generated in the transportation process to ensure that the discharge meets the requirements of environmental protection. Dust removal system usually includes dust collector, fan and discharge pipeline. According to different material characteristics and environmental protection requirements, different dust removal equipment and technical schemes can be selected.

5. Air source device

The air source device is the power core of the Multi point feeding and conveying equipment system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.

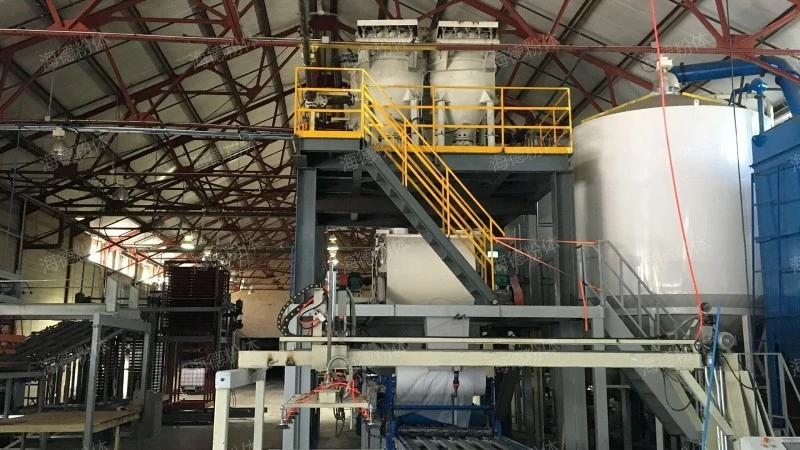

Multi point feeding and conveying equipment

3、Multi point feeding and conveying equipment function

Multi point feeding and conveying equipmentit has the functions of Explosion-proof involves, Physical processing assistance, Closed conveying, material handling and Environmental protection and pollution-free。

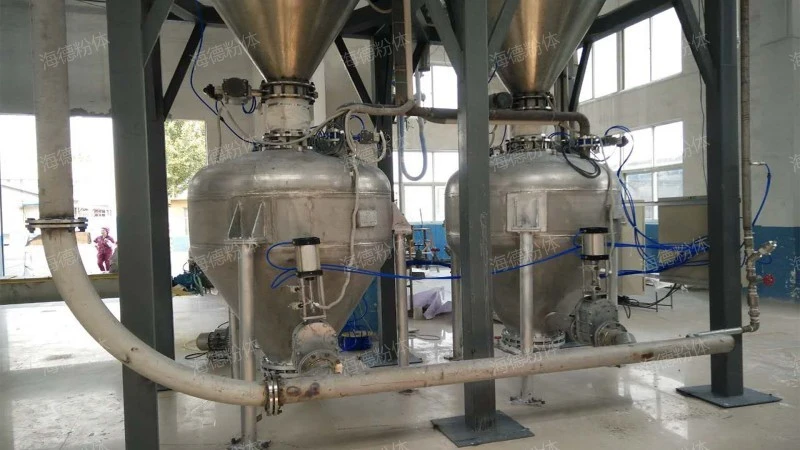

Multi point feeding and conveying equipment

4、Multi point feeding and conveying equipment use

The purpose of Multi point feeding and conveying equipment is introduced as follows:

1. Dust removal and purification

The Multi point feeding and conveying equipment system is usually equipped with a dust collector to collect and treat the dust generated in the transportation process to keep the production environment clean and hygienic.

2. Long distance transportation

The Multi point feeding and conveying equipment system can realize long-distance material transportation and meet the demand of long-distance material transfer. This is especially important for some large factories or cross-regional material transportation.

3. Adapt to complex environment

The Multi point feeding and conveying equipment system can adapt to various complex environments and layout requirements. Whether in high temperature, high humidity, corrosive or flammable and explosive environment, the normal operation of the system can be ensured by selecting suitable materials and taking corresponding safety measures. In addition, the Multi point feeding and conveying equipment pipes can be flexibly arranged according to the actual situation of the production site, which makes the configuration of factory equipment more reasonable.

4. Reduce pollution

The Multi point feeding and conveying equipment system carries out material transportation in a fully enclosed state, which effectively reduces the environmental pollution caused by dust flying and material leakage.

5. Process assistance

In some production processes, Multi point feeding and conveying equipments are not only used for conveying materials, but also as part of the process. For example, in the chemical and pharmaceutical industries, the Multi point feeding and conveying equipment system can cooperate with other equipment to realize process operations such as mixing, grading, drying and cooling of materials, and improve production efficiency and product quality.

Multi point feeding and conveying equipment

5、Multi point feeding and conveying equipment price concessions

The Multi point feeding and conveying equipment price is introduced as follows:

1. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

2. deploy

Configuration refers to the hardware composition of the product, which mainly includes material selection, parts selection, etc. The higher the overall configuration of the product, the higher the price of the Multi point feeding and conveying equipment, which is beyond doubt. hyde powder makes every product with great care in the attitude of being highly responsible to customers, so the price of hyde Multi point feeding and conveying equipment is reasonable for products with the same configuration.

3. Service factor

There is a close relationship between service and price. High-quality service can not only avoid all worries in the process of product use, but also improve the overall strength and comprehensive credibility of manufacturers. In order to improve the service quality, hyde powder Multi point feeding and conveying equipment manufacturers provide comprehensive services for customers and products before, during and after sale, and at the same time make the price as favorable as possible to new and old customers, so that the Multi point feeding and conveying equipment price can meet the purchasing needs of customers.

4. cost of production

When it comes to cost, I believe everyone has heard the saying "You get what you want for a price", which shows that the upfront cost of a product is directly proportional to its value. The upfront cost is high, the value is high, the quality is good, and the price is naturally high. The less the cost is, the lower the price is, and the quality is not good.

5. quality

The condition of the product itself has a great influence on its price, and the cost of the product with excellent quality is higher, which will lead to the increase of the selling price of the product. Therefore, this is an important factor that causes the price fluctuation and change of the Multi point feeding and conveying equipment.

Multi point feeding and conveying equipment

6、hyde workshop real shot

On-site aerial photography of Multi point feeding and conveying equipment。

Multi point feeding and conveying equipment

As you can see from the live video.hyde powder The overall structural design is simple and novel.，generally, it is composed of Conveying pipeline system, dust pelletizing system, control system, delivery system, delivery system and other major components。

Multi point feeding and conveying equipmentIt can be used for Long-distance and multipoint transportation, Heating, cooling and drying, Mixing and classification, material handling, Multi-point transportation, Bulk material transportation and so on，the principle is simple.Mainly based on aerodynamic force, compressed air or other gases generate airflow, so that material particles are suspended in the airflow or transported in groups along the pipeline.。
