What is a Stainless steel AV conveying pump? AV pump specifications, models, and parameters

Stainless steel AV conveying pumpis a common equipment for powder conveying，at work,Mainly based on dense-phase low-speed pneumatic conveying. It transports materials at a speed lower than the suspension speed, and the materials move along the pipeline in a continuous dune shape or in a state where air plugs and material plugs are alternately arranged. This conveying mode allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the standard questions caused by the high speed of materials in traditional pneumatic conveying.，it has the functions of material handling, reduce material loss, environmental protection and dust removal, save space and process control。

1、Brief introduction of Stainless steel AV conveying pump

Stainless steel AV conveying pumpis a commonly used powder conveying equipment，Its ash pump has only one moving part, which has excellent quality, simple structure, reliable performance and less maintenance workload、The pump body itself is wear-resistant and corrosion-resistant, and can run stably for a long time, reducing the failure and downtime caused by wear and corrosion、Able to transport a variety of materials including high temperature and rough materials、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials、During the normal operation of the system, ash accumulates at the outlet of the electric field of the dust collector above the Stainless steel AV conveying pump, and the fly ash falls into the Stainless steel AV conveying pump installed below under the action of gravity, and then is transported to ash storage through the ash conveying pipeline，Using the pressure difference generated by compressed air in the pipeline, the material is pushed to be transported along the pipeline at a speed lower than the suspension speed. This transportation mode avoids the complete mixing of materials and transmission media, reduces the risk of material wear and pipeline blockage, and allows a long transportation distance and moderate transportation capacity.，is a Stainless steel AV conveying pump，it is mainly composed of intake pipe, air control box, level-sensing device, pressure transducer and ash tank body。

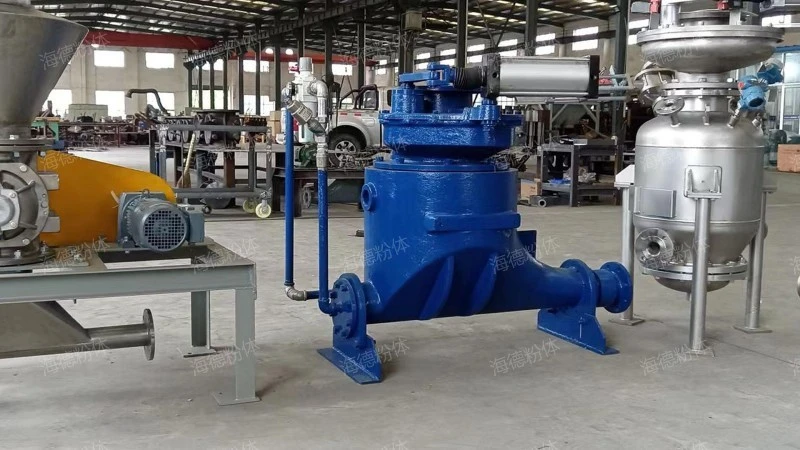

Stainless steel AV conveying pump

2、Stainless steel AV conveying pump video detail

Speak directly with facts on the spot。

Stainless steel AV conveying pump

As you can see from the live video.，Hyde powder is a kind of high quality and low price Stainless steel AV conveying pump。

3、Stainless steel AV conveying pump function

Stainless steel AV conveying pumpmultifunctional, with functions such as process control, reduce material loss, save space, environmental protection and dust removal and material handling，features include compact structure, convenient maintenance, strong adjustability, high degree of automation and large conveying capacity，is based on Hyde powder is a Stainless steel AV conveying pump newly developed by Hyde。

Stainless steel AV conveying pump

4、Stainless steel AV conveying pump structure

The Stainless steel AV conveying pump structure is introduced as follows:

1. pressure transducer

The pressure sensor is used to monitor the pressure change in the Stainless steel AV conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the Stainless steel AV conveying pump.

2. Ash tank body

As the main part of the Stainless steel AV conveying pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

3. Air control box

Each Stainless steel AV conveying pump is equipped with an air control box to control the running state of the Stainless steel AV conveying pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the Stainless steel AV conveying pump.

4. Feed dome valve

The feeding dome valve is the key component to control the material entering the Stainless steel AV conveying pump. It can be opened when needed, allowing materials to enter the Stainless steel AV conveying pump, and closed when not needed to ensure that materials will not leak.

5. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the Stainless steel AV conveying pump. A group of Stainless steel AV conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of Stainless steel AV conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

Stainless steel AV conveying pump

5、Stainless steel AV conveying pump price concessions

The price of Stainless steel AV conveying pump is not expensive, which is mainly determined according to the specifications and models required by customers. The product has a wide range of applications, and the product price is more affordable, the cost is lower, and the market price is different.。

Stainless steel AV conveying pump

6、Hyde company discount

Stainless steel AV conveying pump is a new type of AV pump introduced by Shandong Haide Fenti Engineering Co., Ltd. manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for glass fiber and other industries. Now consult HydeStainless steel AV conveying pump, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

Hyde powder

Stainless steel AV conveying pumpthe product looks atmospheric.，The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy、It needs to be selected and used according to the specific needs and working environment, and at the same time, it needs to pay attention to maintenance to ensure its normal operation and prolong its service life、It is suitable for multi-point dry material transportation of most dust collectors、The fully enclosed transportation system is adopted, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation、Multiple pumps can be connected in series, which is suitable for short-distance centralized transportation, and the transportation distance can reach a certain range, which enhances the flexibility of its application。
