What is a Medium pressure three leaf Roots vacuum pump? Introduction to the principle of Roots Blower structure

Medium pressure three leaf Roots vacuum pumpis a device that generates positive pressure or negative pressure through the relative rotation of two impellers, thus compressing and conveying gas.，it has the characteristics of smooth operation, low noise, stable and reliable, wide application range and Precise control，It has a wide range of uses, including dry, aquaculture, sewage disposal, Desulfurization oxidation and Ventilation，is a Medium pressure three leaf Roots vacuum pump newly developed by hyde。

1、Brief introduction of Medium pressure three leaf Roots vacuum pump

Medium pressure three leaf Roots vacuum pumpis a double impeller synchronous compression machine, belonging to a positive displacement blower.，structure mainly includes: case, bearing, bearing, case, impeller and so on，productThe overall structural design is relatively simple and compact.。

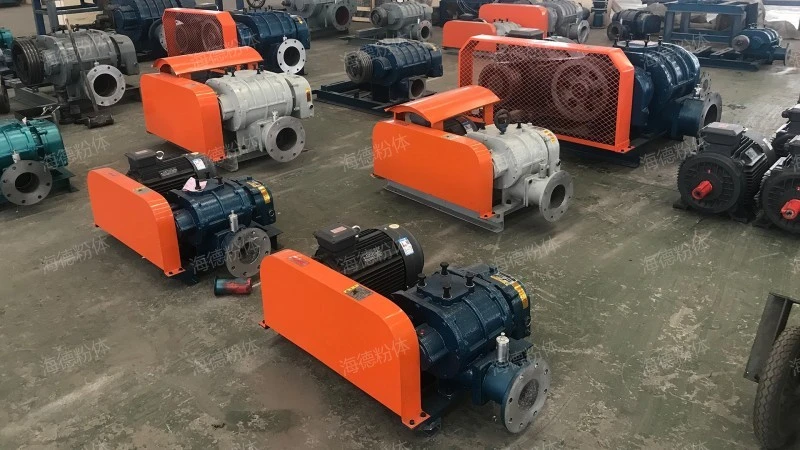

Medium pressure three leaf Roots vacuum pump

2、Working principle of Medium pressure three leaf Roots vacuum pump

Medium pressure three leaf Roots vacuum pumpat the start of the operation,The two three-blade impellers rotate relatively in the space sealed by the casing and the wallboard. Each impeller adopts the envelope of involute or epicycloid, the three blades of each impeller are exactly the same, and the two impellers are also exactly the same, which greatly reduces the machining difficulty. During the rotation of the impeller, air enters the air inlet cavity under the action of atmospheric pressure, and then two blades of each impeller, the wallboard and the casing form a sealed cavity. During the rotation of the impeller, the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades, and because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out, so that the air is continuously transported from the air inlet to the air outlet.，super quality and competitive price。

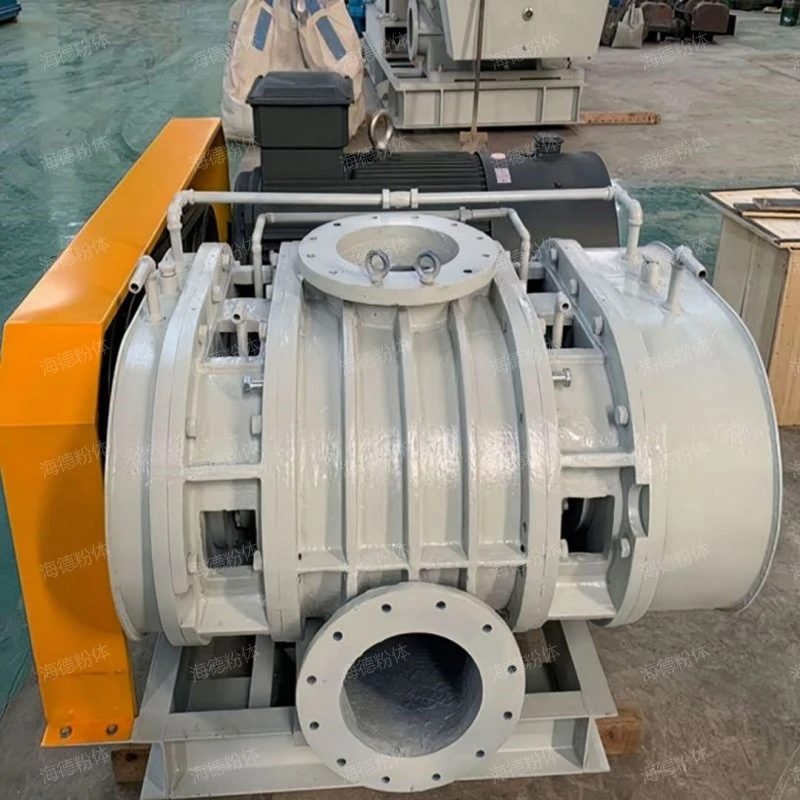

Medium pressure three leaf Roots vacuum pump

3、Medium pressure three leaf Roots vacuum pump structure composition

The Medium pressure three leaf Roots vacuum pump has the following structure

1. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

2. bearing

It is used to support the rotation of the rotor and bear the weight of the rotor and the load during operation.

3. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

4. impeller

It is the rotating part of the Medium pressure three leaf Roots vacuum pump, which is divided into two leaves and three leaves. However, due to many advantages such as smaller air pulsation, less noise and smoother operation, the three-leaf Medium pressure three leaf Roots vacuum pump has gradually replaced the two-leaf Medium pressure three leaf Roots vacuum pump.

5. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

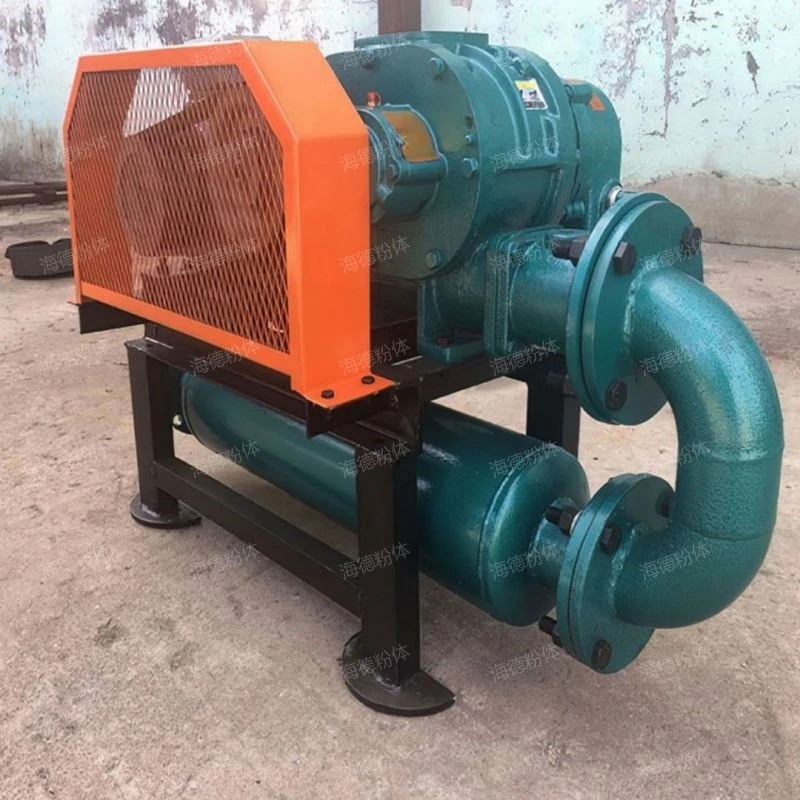

Medium pressure three leaf Roots vacuum pump

4、Medium pressure three leaf Roots vacuum pump performance advantage

Medium pressure three leaf Roots vacuum pumps have the following advantages.

1. Strong adaptability

Medium pressure three leaf Roots vacuum pumps are widely used in many fields, such as aquaculture, etc., especially suitable for gas transportation and pressurization systems in low-pressure occasions, and can also be used as vacuum pumps.

2. Durable performance

The impeller and shaft of the Medium pressure three leaf Roots vacuum pump are designed as a whole, and the impeller is not worn, so the performance is durable and can run continuously for a long time.

3. Convenient maintenance

The structure of the Medium pressure three leaf Roots vacuum pump is relatively simple and easy to maintain.

4. be of simple construction

The Medium pressure three leaf Roots vacuum pump is small in size and occupies a small area, which makes it easy to arrange and install in places with limited space.

5. Durable performance

Impeller and shaft are integrated structure, and the impeller is not worn, so the performance of the fan is durable and can run continuously for a long time.

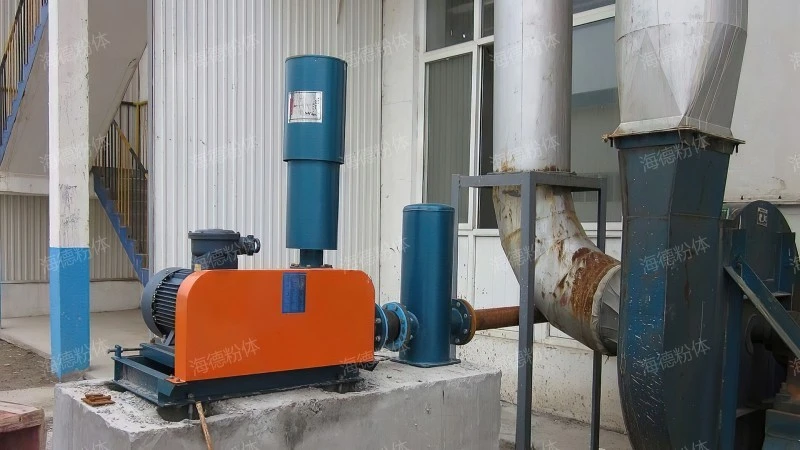

Medium pressure three leaf Roots vacuum pump

5、Medium pressure three leaf Roots vacuum pump application

Medium pressure three leaf Roots vacuum pumpIt is mostly used in Material fluidization, exhaust emission, Pressurized transportation, mix, aquaculture, material handling and so on，is a kind of high quality and low price Medium pressure three leaf Roots vacuum pump，it is an ideal choice for customers to buy Medium pressure three leaf Roots vacuum pump。

Medium pressure three leaf Roots vacuum pump

6、company profile

hyde is a professional and large-scale Medium pressure three leaf Roots vacuum pump manufacturer, which has many years of production and operation, complete production facilities, skilled staff and high production capacity and product quality. It is a Medium pressure three leaf Roots vacuum pump manufacturer trusted by consumers at present.。

hyde powder

Medium pressure three leaf Roots vacuum pumpis a positive displacement blower with forced gas transmission characteristics.，it is widely used inFood and beverage processing,sewage disposal,Environmental protection industry,coal chemical industry,smelt and other industries。
