Introduction to Oil free anti-corrosion three leaf Roots vacuum pump, advantages, characteristics and principles of blower

Oil free anti-corrosion three leaf Roots vacuum pumpis an efficient volumetric gas conveying and pressurizing equipment.，it can be used in smelt, mine, petrochemical industry, Dust removal, power and other industries，Commonly used inaeration,material handling,cool,dehydrate,supply air and so on，is a common Oil free anti-corrosion three leaf Roots vacuum pump，the main features are be of simple construction, wide application range, convenient maintenance, stable and reliable and economical and durable。

1、Brief introduction of Oil free anti-corrosion three leaf Roots vacuum pump

Oil free anti-corrosion three leaf Roots vacuum pumpthe models are complete and can meet the needs of different users for different purposes.，the product looks beautiful.，can be customized according to user's needs.。

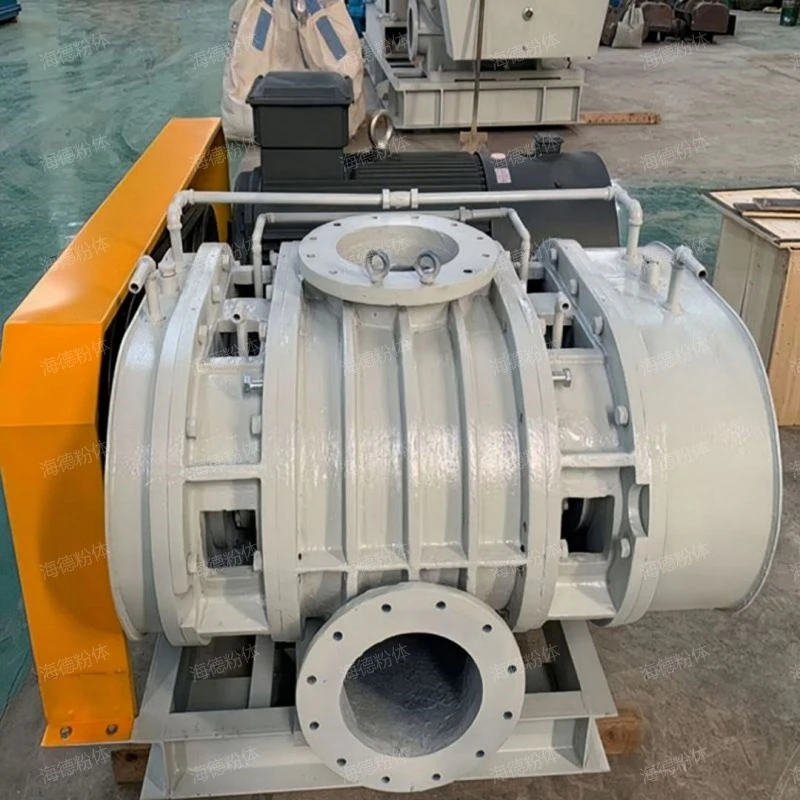

Oil free anti-corrosion three leaf Roots vacuum pump

2、Introduction of Oil free anti-corrosion three leaf Roots vacuum pump characteristics

Oil free anti-corrosion three leaf Roots vacuum pumpfeatures include low noise, convenient manufacture, wide application range, smooth operation and strong adaptability，is a kind of high quality and low price Oil free anti-corrosion three leaf Roots vacuum pump，was developed and designed by hyde。

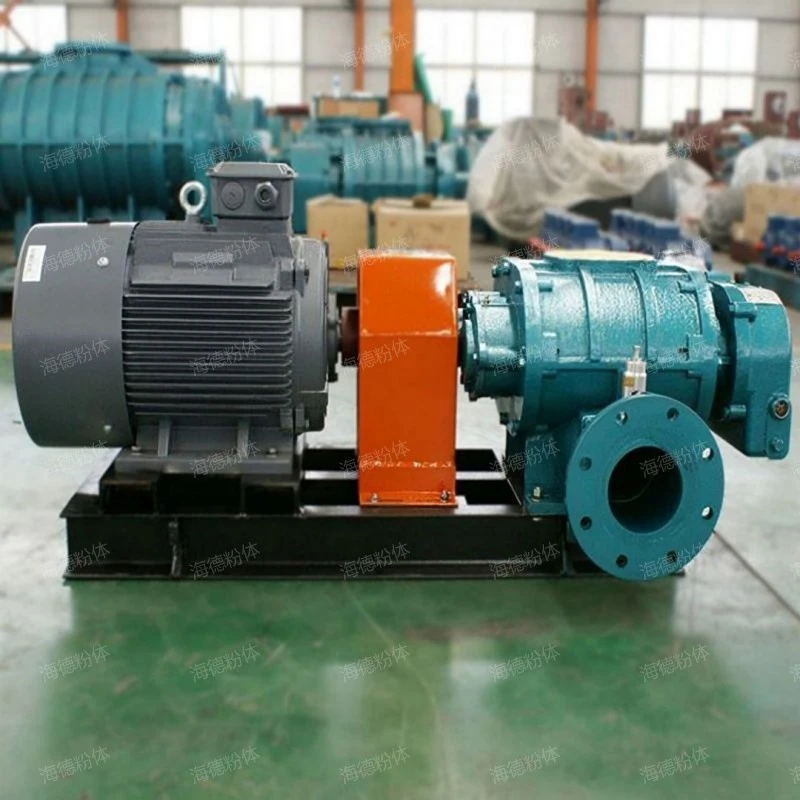

Oil free anti-corrosion three leaf Roots vacuum pump

3、Working principle of Oil free anti-corrosion three leaf Roots vacuum pump

Oil free anti-corrosion three leaf Roots vacuum pumpat work,The two three-blade impellers rotate relatively in the space sealed by the casing and the wallboard. Each impeller adopts the envelope of involute or epicycloid, the three blades of each impeller are exactly the same, and the two impellers are also exactly the same, which greatly reduces the machining difficulty. During the rotation of the impeller, air enters the air inlet cavity under the action of atmospheric pressure, and then two blades of each impeller, the wallboard and the casing form a sealed cavity. During the rotation of the impeller, the air in the air inlet cavity is continuously brought to the exhaust cavity by the sealed cavity formed by the two blades, and because the impellers in the exhaust cavity are meshed with each other, the air between the two blades is squeezed out, so that the air is continuously transported from the air inlet to the air outlet.，Widely used inmix,exhaust emission,Desulfurization oxidation,Ventilation,sewage disposal and so on。

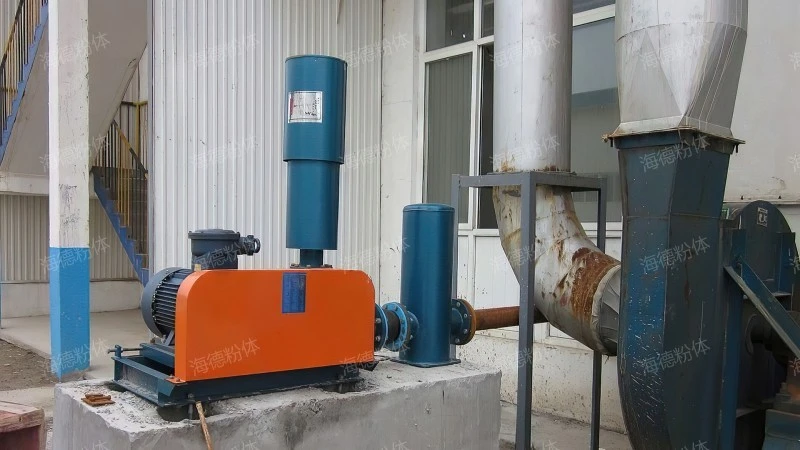

Oil free anti-corrosion three leaf Roots vacuum pump

4、Oil free anti-corrosion three leaf Roots vacuum pump structure

The Oil free anti-corrosion three leaf Roots vacuum pump structure is introduced as follows:

1. wallboard

It is mainly used to connect the casing with the impeller, support the rotation of the impeller, and play the role of end sealing.

2. rotator

The core components are two identical lobed rotors, which usually adopt involute or epicycloid envelope design to ensure close cooperation during rotation and reduce leakage.

3. fuel tank

Mainly used for storing lubricating oil used for lubricating gears and bearings. The oil tank is used to store lubricating oil to lubricate bearings and gears and reduce wear and friction.

4. case

It mainly plays the role of supporting (wallboard, impeller, muffler) and fixing. The casing is the external structure of the Oil free anti-corrosion three leaf Roots vacuum pump, which is used to support and fix the rotor, bearings and other components, while ensuring the gas tightness.

5. muffler

Used to reduce the noise caused by airflow pulsation when the Oil free anti-corrosion three leaf Roots vacuum pump enters and exits.

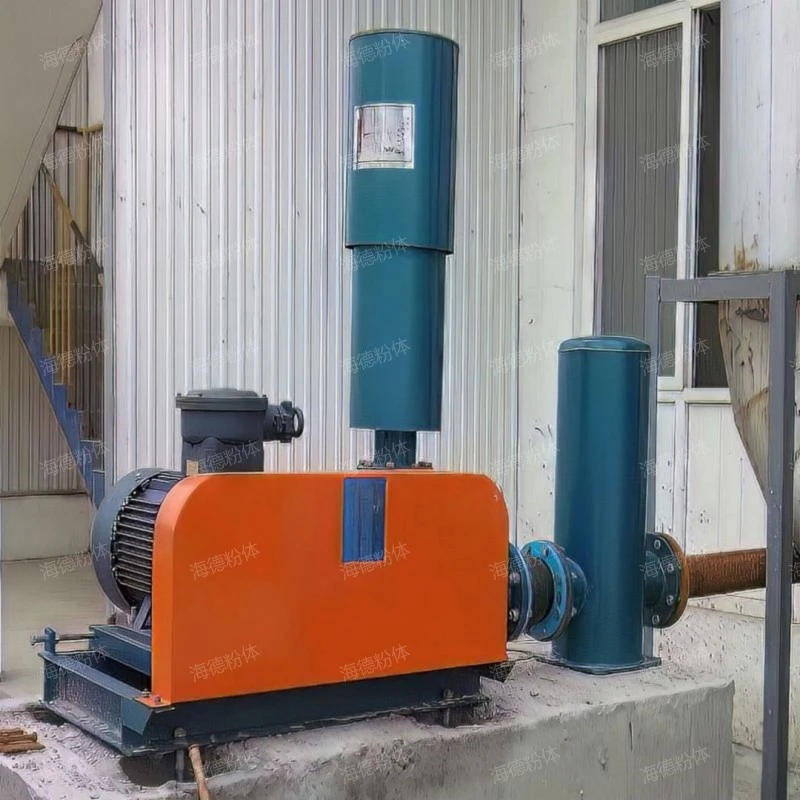

Oil free anti-corrosion three leaf Roots vacuum pump

5、Introduction of advantages of Oil free anti-corrosion three leaf Roots vacuum pump

The advantages of Oil free anti-corrosion three leaf Roots vacuum pump are as follows:

1. Run smoothly

Due to the adoption of synchronous gear transmission and small gap design, the Oil free anti-corrosion three leaf Roots vacuum pump runs stably and reliably, without contact and wear parts, and has a long service life.

2. energy-efficient

The Oil free anti-corrosion three leaf Roots vacuum pump has high efficiency and can realize gas transportation and pressurization with low energy consumption.

3. Convenient maintenance

The structure of the Oil free anti-corrosion three leaf Roots vacuum pump is relatively simple and easy to maintain.

4. Durable performance

Impeller and shaft are integrated structure, and the impeller is not worn, so the performance of the fan is durable and can run continuously for a long time.

5. energy-efficient

The Oil free anti-corrosion three leaf Roots vacuum pump has high efficiency and can realize gas transportation and pressurization with low energy consumption.

Oil free anti-corrosion three leaf Roots vacuum pump

Oil free anti-corrosion three leaf Roots vacuum pumpis a Oil free anti-corrosion three leaf Roots vacuum pump，the product looks atmospheric.。
